Digital Liquid Dispenser

Digitally controlled program
Easy to use touch sensitive controls
Suck-back ensures no dripping
Suitable for wide range of dispensing needs
Store up to 10 dispensing routines

Description

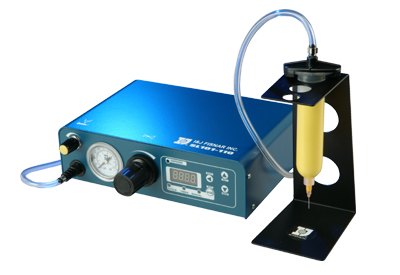

The IJF SL101 Digital Dispenser is the latest "teach & learn" bench top dispenser with a bright LCD and 10 memory locations to automatically cycle 10 self-taught programs. Auto-cycling is one of three operation modes available. The other two are: manual-mode, enabling a dispense operation controlled by a foot pedal, and timed-mode which will dispense to a pre-set time.

Auto-cycling operates by sequencing a self-taught cycle of events including a dispense time together with a wait or pause condition between the cycles. This feature enables the SL101 to be used as a stand-alone, semi-automated dispensing system. An adjustable suck-back feature prevents post-dispense dripping of low-viscosity fluids and potential oozing of higher-viscosity creams and pastes.

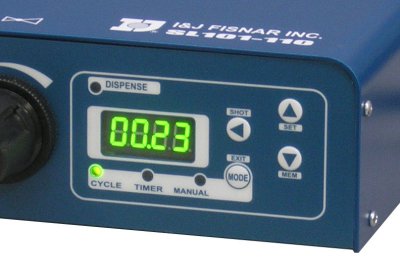

SL101 Control Panel
IJF SL101 Digial Dispenser Control Panel
The simple control panel

Ready to use
The IJF SL101 comes complete with all accessories you need to be up and running straight out of the box, including dispensing needles and 5cc and 30cc barrels and barrel adapter assemblies. Compressed air connection is via a rear mounted push-fit connector which accepts 1/4" or 6mm diameter hose. A suitable air input hose with a 1/4" NPT fitting is also included (IJF561851).

Specifications
Size	21.92 x 21.59 x 6.68cm
Dispense time	0.01 - 99.99 seconds
Operation modes	Manual, Timed, Cycle
Internal memory	10 Memory locations
Voltage	220 VAC
Air input	70 to 100 psi (5-7 bar)
Air output	1-100 psi (0.1-7 bar)
Standards	CE approved, RoHS compliant
Weight	1.59 kg
The IJF SL101 requires compressed to function

Ordering information
Part number	Description
IJFSL101-220	Digital Dispenser 220V CE

See also!

Dispensing barrels & accessories

Dispensing needles & tips

	Additional printed catalogue or brochure available
	Obtain more information, samples or literature
	Contact details and how to order
