Foot Valve Dispenser

Economical and simple to use
Wide range of applications
Barrel suck-back option ensures no dripping
Heavy duty design

Description
A basic air-powered liquid dispensing system, floor mounted and foot actuated. Includes a three-way air valve and built in air regulator, ideal for non-critical dispensing operations. As long as the foot pedal is depressed, fluid will be dispensed.

DB815

These foot pedal dispensers are suitable for all types of liquids and fluids, including adhesives, greases and sealants. They use our standard range of dispensing consumables (barrels, cartridges and needles & tips) and can be combined with a holder for dispensing from 310ml cartridges. The model with suck-back option ensures that low viscosity liquids do not drip.

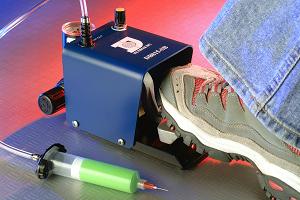

Foot Pedal Dispenser

Specifications
Size	IJFDB815 - 11.43 x 21.59 x 12.40cm IJFDB815-SB - 11.43 x 21.59 x 13.66cm
Cycle	Continuously maintained by user
Foot pedal	Air valve integral in unit
Air input	70 to 100 psi (5 to 7 bar)
Air output	1 - 100 psi (0.1 - 7 bar)
Weight	IJFDB815 - 1.59 kg IJFDB815-SB - 1.73Kg

DB815

Ordering information
Part number	Description
IJFDB815	Foot valve dispenser
IJFDB815-SB	Foot valve dispenser with suck-back
