Automated Bulk Cyanoacrylate Adhesive (CA) Dispensing System

1 3

About Automated Bulk Cyanoacrylate Adhesive (CA) Dispensing System

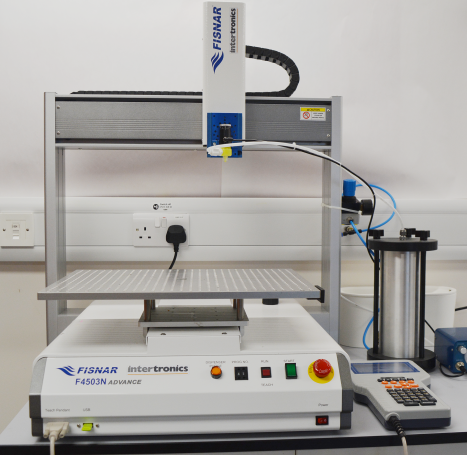

The automated bulk cyanoacrylate adhesive (CA) dispensing system allows for dispensing a shot size as small as 0.001ml up to 500 times a minute, while keeping air supply and wetted parts separate. This dispensing valve system combines a pressure pot or reservoir fed diaphragm valve with a FIS F7400N Benchtop Dispensing Robot to position the valve over your parts. A FIS DC50 Digital Dispensing Controller is used to actuate the valve. It can be used for automating the dispensing of low to medium viscosity materials such as cyanoacrylate adhesives, adhesives, flux, lubricants, solvents, inks and more from a bulk style packaging.

This dispensing system is an example. We would be pleased to help you put together a dispensing system customised for your particular needs.

Features & Benefits

  • Robot mounted diaphragm valveSuitable for dispensing low to medium viscosity materials
  • Suitable for dispensing cyanoacrylate adhesives (CAs)
  • Suitable for bulk feeds
  • Stroke adjustment feature provides shot size control
  • Minimum shot size 0.001ml
  • Up to 500 shots a minute cycle rate
  • Separated wetted parts
  • System fits easily onto a benchtop
  • Easily programmable using the included teach pendant
  • Repeatable and consistent dispensing
  • Improved productivity

Ordering Information

Part number Description
IJFVD510 Diaphragm valve
IDMPP600 Pressure pot dispensing reservoir – 1 litre
FISDC50 Digital Liquid Dispenser
FIS7400N 400 x 400mm work area 3-axis robot
Enclosure A range of safety enclosures are available with light curtains, interlocked doors etc.




Next Steps

Our technical sales team are on hand to discuss your application requirements. Click here to get in touch.

Find out more information on how to purchase.
