Bench top
Dispensing Robot
- Desktop, portable
- Compact
- Simple to program
- Great value!
Description

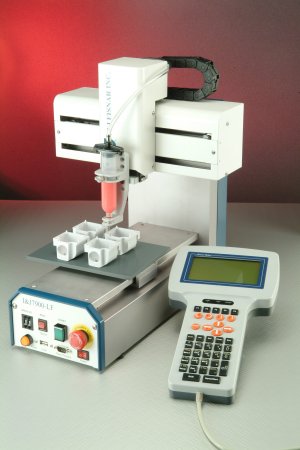

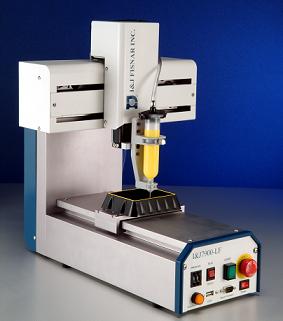

The I&J7900-LF is a compact desktop dispensing robot featuring
all the programming functions and memory capacity of the larger I&J7000
models. The I&J7900-LF is
an ideal choice when cost and bench space are important considerations. The robot
is fully RoHS compliant with a sizable work area of 200 x 200mm and a Z-axis
of 50mm. It is portable with up-to-date technology in teach pendant
design and stepping motor drive control systems. The I&J7900-LF
is a robust industrial robot and has all the features found in higher cost
dispensing robots.
Interpolation is possible in all axes permitting any dispensing path such as gasket beads and auto-fill areas. The I&J7900-LF can apply dots, lines, circles, and eclipses in any point-to-point or continuous path configuration.
The I&J7900-LF can use simple dispensing barrels, controlled by a pneumatic dispenser, or a dispensing valve, fed from some form of reservoir. Please contact us for a full discussion of your requirements.
| Specifications | |||
| X/Y/Z working area (mm) | 200/200/50 | ||
| Load worktable/tool | 3kg/1kg | ||
| Speed PTP X&Y/Z (mm/sec) | 500/250 | ||
| Repeatability | +/- 0.04mm per axis | ||
| Resolution | 0.02mm per axis | ||
| Data memory | 100 programs, 4000 points/program | ||
| Data storage | Compact flash card | ||
| Processor | 32 Bit | ||
| Display | Teach pendant LCD | ||
| Operation system | PTP (point to point) & CP (continuous path) | ||
| Interpolation linear/circular | 3 axis | ||
| Teaching method | Teach pendant | ||
| I/O signals | 4 inputs/4 outputs | ||
| External interface | USB/RS232 | ||
| Power supply | Auto-switching: AC95-132V 150W AC180-250V 150W |
||
| Operating temperature | 0 – 40°C | ||
| Relative humidity (no condensation) |
20-90% | ||
| Dimensions WxDxH (mm) | 323 x 443 x 440 | ||
| Weight | 10 kg | ||
| Ordering information | ||
| Part number | Description | |
| IJFI&J7900-LF | Robot 3-axes 110/220V CE | |
| IJF562008C | External start box for optional enclosures | |
| IJFDSPE501A | Dispenser 220V CE | |
 |
See also! DSPE501A pressure dispenser with high-volume air exhaust Rotary table dispensing
|
 |
Additional printed catalogue or brochure available |
 |
Obtain more information, samples or literature |
 |
Contact details and how to order |
