Description
IDM KT Cartridge Guns are professional air dispensing guns designed for use with 310ml adhesive/sealant cartridges. Effortless to operate with minimal trigger pressure, these guns provide great benefits over manual ones. Adhesive/sealant flow is smooth and continuous, providing fast, consistent results and improved productivity.

Features

• High volume trigger valve in handle
• Quick exhaust valve, stops flow and reduces to a minimum sealant/adhesive over extrusion
• Integral pressure regulator, accurately controls speed of flow
• Lightweight aluminium and high-grade plastic construction

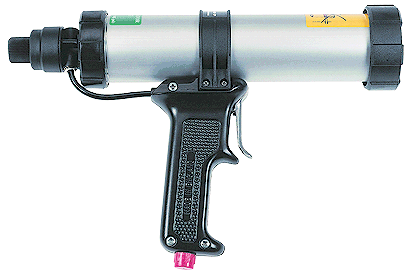

IDM KT020219 Cartridge Gun
Works by pressing the back edge of the cartridge against a rubber seal, and feeding compressed air directly into the cartridge.

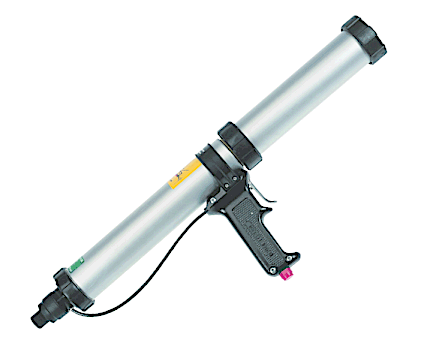

IDM KT010621 Cartridge Gun
Works by air controlled piston rod, thus preventing compressed air getting into the sealant/adhesive. Ideal for materials which are adversely affected by air, or for higher pressures.

Integration
INTERTRONICS can integrate these Cartridge Guns onto robots or other dispensing systems, by removing the gun handles and providing appropriate connections, tooling and fixtures.

See also!  Syringe Gun for dispensing barrels  Autotube Dispensing System, designed to dispense liquids, pastes, greases, silicones and similar liquids directly from their collapsible tubes  Dispensing guns for two part cartridge systems  The JBE1113 Automatic Liquid Dispenser, with its versatile design, is perfectly suited to a wide variety of dispensing applications
