Dispensing Consumables
Dispensing Syringe Barrels, Pistons

Description

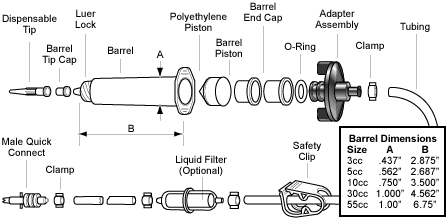

INTERTRONICS Dispensing Consumables are compatible with most pressure dispensers. We present a very comprehensive range, including barrels and accessories for UV or light sensitive materials. Our dispensing tips & needles, and dispensing cartridges are listed separately. If you cannot find what you need, please contact us for advice.

Premium Syringe Barrels
Syringe Barrels - Natural
Highly stable and accurate design with minimal resistance and ultra parallel uniformity over length of the syringe barrel make the 500 series the premium product the first choice for packaging high value fluids and accurate dispensing. All dispensing barrels are designed to be integrated seamlessly with any of our liquid dispensing units. Designed for any production setting, they come in size from 3cc to 55cc and in UV blocking amber and black versions for light or UV sensitive materials. All disposable barrels have a luer lock end fitting to easily attach dispensing tips. The round bottom design allows for ease of dispensing more viscous materials. Polypropylene. Silicone free.
Part number	Size	Base type	I.D	O.D	Length	Qty per pkg
FIS5601000	3cc	Bevel	0.374	0.451	2.830	10
FIS5601001	5cc	Bevel	0.493	0.573	2.616	10
FIS5601002	10cc	Round	0.634	0.739	3.478	10
FIS5601003	10cc	Bevel	0.634	0.739	3.478	10
FIS5601004	30cc	Bevel	0.885	1.001	4.527	10
FIS5601005	30cc	Round	0.885	1.001	4.527	10
FIS5601006	55cc	Round	0.885	1.021	6.846	10
FIS5601007	55cc	Bevel	0.885	1.021	6.846	10
Syringe Barrels - Black
Completely opaque, do not allow any outside light to pass through. For use with highly sensitive UV or light curing materials.
Part number	Size	Base type	I.D	O.D	Length	Qty per pkg
FIS5601012	3cc	Bevel	0.374	0.451	2.830	10
FIS5601013	5cc	Bevel	0.493	0.573	2.616	10
FIS5601014	10cc	Round	0.634	0.739	3.478	10
FIS5601015	10cc	Bevel	0.634	0.739	3.478	10
FIS5601016	30cc	Bevel	0.885	1.001	4.527	10
FIS5601017	55cc	Round	0.885	1.021	6.846	10
Syringe Barrels - Amber
For UV curing materials. Blocks light up to 520mm visible light while still allowing the operator to see inside the barrel.
Part number	Size	Base type	I.D	O.D	Length	Qty per pkg
FIS5601008	10cc	Round	0.634	0.739	3.478	10
FIS5601009	30cc	Bevel	0.885	1.001	4.527	10
FIS5601010	30cc	Round	0.885	1.001	4.527	10
FIS5601011	55cc	Round	0.885	1.021	6.846	10

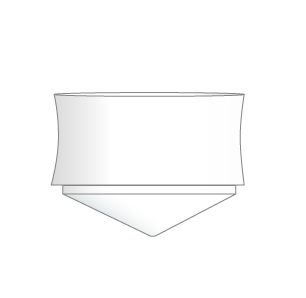

Air Powered Polyethylene Pistons
Part number	Size	Base type	Qty per pkg
White PE Pistons
Pistons serve two purposes, they spread pressure evenly across the fluid and trap the fluid in the syringe. They also prevent tunneling in higher viscosity fluids. Pistons should not be used with cyanoacrylates due to potential stalling caused by blooming of the material. Black PE pistons are used with UV fluids.
FIS5601018	3cc	Bevel	50
FIS5601019	5cc	Bevel	40
FIS5601020	10cc	Round	30
FIS5601021	10cc	Bevel	30
FIS5601465	30cc	Bevel	20
FIS5601022	55cc	Round	20
Black PE Pistons
FIS5401024	10cc	Bevel	30
FIS5601462	30cc	Bevel	20
FIS5601025	55cc	Bevel	20

Syringe Barrel Pistons - Rubber
Soft black neoprene pistons are used to prevent tunneling in high viscosity fluids - care should be taken to ensure the piston is suitable for the dispensing application.
Part number	Size	Qty per pkg
FIS5601066	3cc	10
FIS5601067	5cc	10
FIS5601068	10cc	10
FIS5601069	30 - 55cc	10

Syringe Barrel End Caps
Red polyethylene end cap bungs secure the neck opening of the syringe barrel when not in use or in storage. Quick twist fastening ensures air tight seal. Blue polyethylene end cap clips secure the neck of the syringe barrel when not in use or in storage. Clip fastening ensure air tight seal
End Cap Bung
Part number	Size	Qty
FIS5601050	3cc	10
FIS5601051	5cc	10
FIS5601052	10cc	10
FIS5601053	30 - 55cc	10
End Cap Clip
FIS5601070	3cc	10
FIS5601071	5cc	10
FIS5601072	10cc	10
FIS5601073	30 - 55cc	10

Syringe Barrel Tip Caps
Assortment of barrel tip caps that help to preserve material once within the barrel.
Standard Tip Caps
Part number	Size	Colour	Qty
FIS5601054	Fits all	Natural	10
FIS5601055	Fits all	Natural	100
FIS5601056	Fits all	White	10
FIS5601057	Fits all	White	100
FIS5601058	Fits all	Black	10
FIS5601059	Fits all	Black	100
Flat Tip Caps
FIS5401010	Fits all	Blue	50
FIS5401011	Fits all	Blue	100

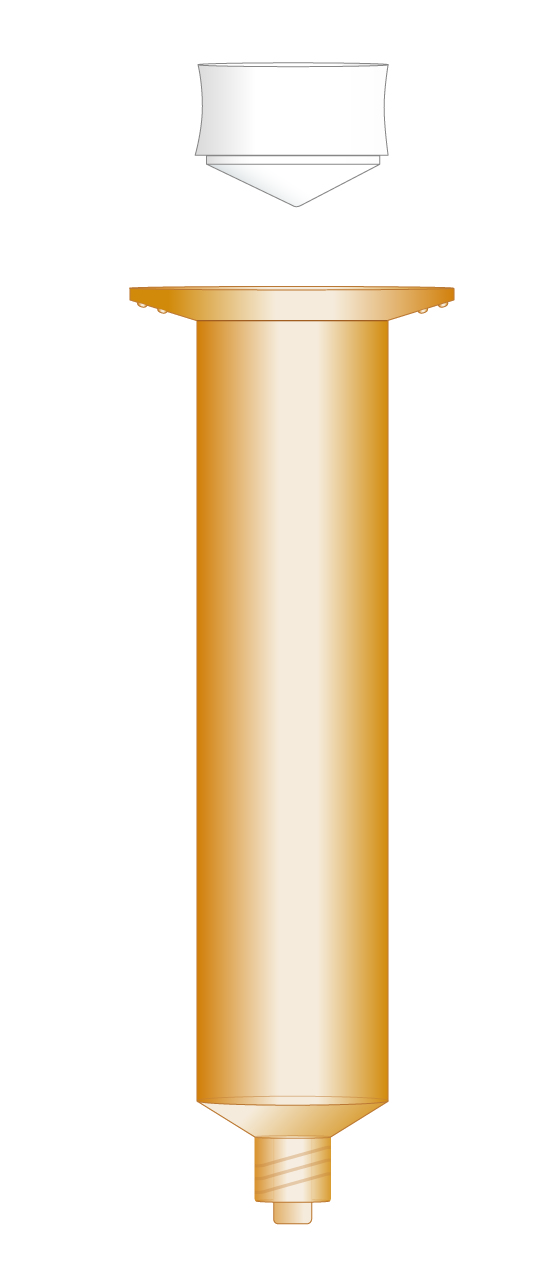

Industrial Syringe Barrel & Piston Kits
A combined packaged kit of 100 bevel base syringes and 100 PE pistons for optimum storage and fast retrieval. White wiper pistons included.
Part number	Size	Colour
FIS5601311	3cc	Natural
FIS5601312	5cc	Natural
FIS5601313	10cc	Natural
FIS5601314	30cc	Natural
FIS5601315	55cc	Natural
FIS5601316	10cc	Amber
FIS5601317	30cc	Amber
FIS5601318	55cc	Amber
FIS5601319	3cc	Black
FIS5601320	5cc	Black
FIS5601321	10cc	Black
FIS5601322	30cc	Black

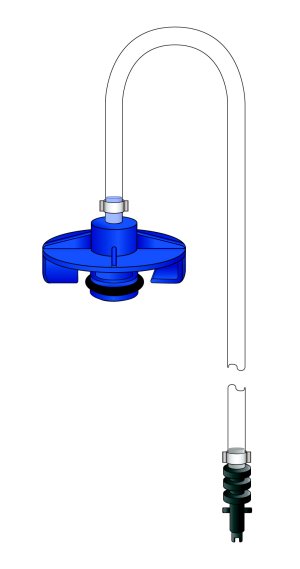

Syringe Barrel Adapters

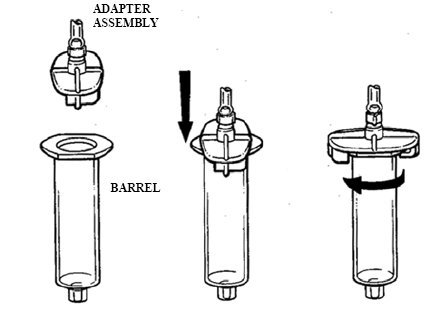

Syringe barrel adapter assemblies connect a syringe to a time/pressure controller. They provide a convenient quick connect at the controller and the syringe barrel and are available on two tube lengths and O.D sizes.
Hose 1/8" (3.175mm) OD - Blue Adapter Head
Part number	Size	Hose Length	Qty
FIS5601034	3cc	3ft (91cm)	1
FIS5601035	5cc	3ft (91cm)	1
FIS5601036	10cc	3ft (91cm)	1
FIS5601468	30cc	3ft (91cm)	1
FIS5601037	55cc	3ft (91cm)	1
FIS5601038	3cc	6ft (152cm)	1
FIS5601039	5cc	6ft (152cm)	1
FIS5601040	10cc	6ft (152cm)	1
FIS5601469	30cc	6ft (152cm)	1
FIS5601041	55cc	6ft (152cm)	1
Hose 1/4" (6.35mm) OD - Black Adapter Head
Part number	Size	Hose Length	Qty
FIS5601027	5cc	3ft (91cm)	1
FIS5601028	10cc	3ft (91cm)	1
FIS5601466	30cc	3ft (91cm)	1
FIS5601029	55cc	3ft (91cm)	1
FIS5601031	5cc	6ft (152cm)	1
FIS5601032	10cc	6ft (152cm)	1
FIS5601467	30cc	6ft (152cm)	1
FIS5601033	55cc	6ft (152cm)	1
FIS5601451	5cc	3ft (91cm) including filter	1
FIS5601452	10cc	3ft (91cm) including filter	1
FIS5601471	30cc	3ft (91cm) including filter	1
FIS5601453	55cc	3ft (91cm) including filter	1

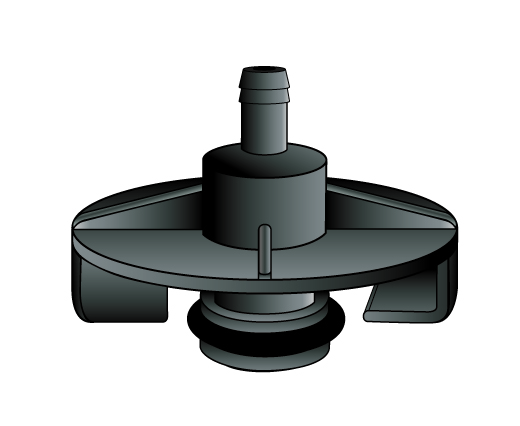

Syringe Barrel Adapter Fitting with "O" Ring, No Hose
Barrel adaptor connector allowing you to add your own hose for a custom length
Part number	Size	Qty
1/8" 3.175mm OD (Blue)
FIS5601478	3cc	1
FIS5601479	5cc	1
FIS5601480	10cc	1
FIS5601481	30cc	1
FIS5601482	55cc	1
1/4" 6.35mm OD (Black)
FIS5601455	5cc	1
FIS5601456	10cc	1
FIS5601460	30cc	1
FIS5601457	55cc	1

Syringe Barrel Adapter "O" Rings
Replacement "O" rings for syringe barrel adapters in standard Buna N rubber and solvent resistant Viton.
Buna N
Part number	Size	Qty
FIS5601042	3cc	10
FIS5601043	5cc	10
FIS5601044	10cc	10
FIS5401017	30cc	10
FIS5601045	55cc	10
Viton (for use with solvents)
FIS5601046	3cc	10
FIS5601047	5cc	10
FIS5601048	10cc	10
FIS5601024	30cc	10
FIS5601049	55cc	10

Other Information

Download the complete Fisnar Dispensing Consumables Catalogue

See also!  Dispensing needles and tips  Best value liquid dispensing machine  Manual dispensing syringes

	Additional printed catalogue or brochure available
	Obtain more information, samples or literature
	Contact details and how to order
