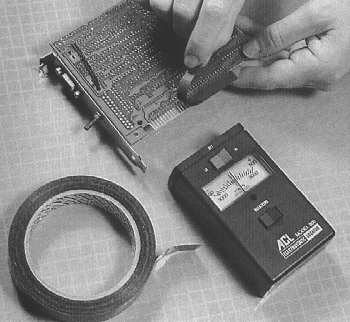

Anti-Static
Polyimide Masking Tape
- Low charging
- Safe for use in an ESD Protected Area
- As effective as conventional Kapton-type masking tapes
- Patented
- Masking for:
- Soldering
- Conformal coating
INT 702 Anti-Static Polyimide Masking Tape is a unique product for masking printed circuit boards during the soldering or conformal coating process. It combines the unmatched temperature resistance of polyimide film with a new surface conductive adhesive. Polyimide film is very often known as "Kapton", which is a brand name and registered trademark of DuPont, a manufacturer of polyimide materials.
Conventional polyimide adhesive tapes can generate up to 10,000 volts of electrostatic charge during tape unwind and during removal from pcb's. Highly charged tapes can induce damage in static sensitive devices, and discharge on to loaded boards. By virtue of its special construction, INT 702 is a low charging tape, which is safe to use in an ESD Protected Area. The low charging characteristics of INT 702 are maintained even at low humidity.
INT 702 withstands the heat of machine soldering, and removes cleanly from the pcb afterwards, leaving no residue. It may also be used for conformal coating.
INT 702 is also available as die-cut discs.
| Specifications | |
| Film | Polyimide special construction |
| Base thickness | 0.025 mm |
| Total thickness | 0.060 mm |
| Adhesive | Conductive polysiloxane |
| Adhesive strength | 1.0 N/cm |
| Tensile strength | 50 N/cm |
| Elongation | 70% |
| Surface resistivity (adhesive) |
103 - 104 ohms/sq |
| Temperature resistance | Up to 300°C short term |
| Colour | Brown opaque |
| Widths available | From 6 mm standard |
| Roll length | 33 metres |
| Die cuts | Available as discs and specials |
Other Information
Our Technical Bulletins & Articles page has links to:
- Technical Bulletin: TB2001-04 ESD Determination Methods for INT 702
 |
See also! Solder masking dots & tape Wondermask P, a liquid peelable solder mask High temperature masking tape
|
Obtain more information, samples or literature
Contact details and how to order
