INT UV300
UV Lamp Conveyor
  • Variable speed
  • Configurable for 1 or 2 lamps
  • Adjustable lamp height
  • Manufactured in the UK

Description

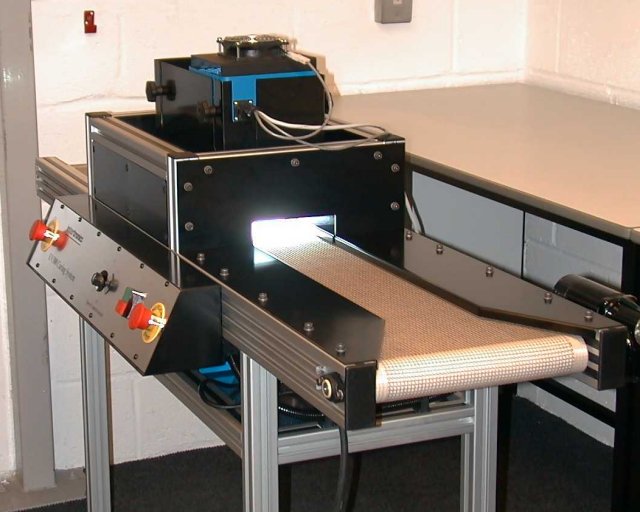

The INTERTRONICS UV300 is a conveyor unit designed to take UV curing lamps for curing UV adhesives and coatings. It is particularly suited for Dymax Flood and Focussed Beam UV and Visible Light Curing Systems ( 114Kb). The standard lamp tunnel is configurable for any combination of 1 or 2 Reflector Housings, and includes lamp height adjustment. Other makes of lamp may be accomodated upon request.

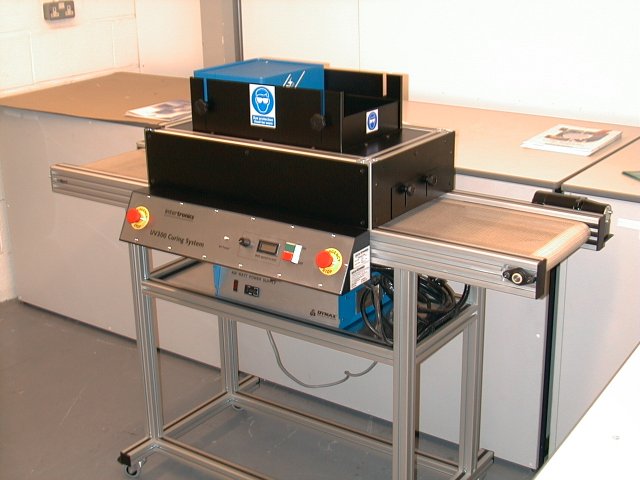

INTUV300

Features

  • Variable speed, adjustable from 0.5 to 5.5 m/minute
  • Digital speed readout
  • Integrated cooling system
  • UV stable PTFE mesh belt, 300mm wide, with adjustable tension
  • Safety cut-out with indicator light, shutting down lamps if belt stops
  • Free standing with lockable wheels (bench mounting is an option)
  • Integral shelf for power supplies
  • CE compliant
Specifications
Overall width 480mm
510mm including control panel
Overall length 1.5m (optionally longer for infeeds or outfeeds)
Height to belt surface 900mm
Power requirements 230VAC, 50Hz, 13A max


Customised infeeds, outfeeds and shielding are available.
