Pinch Tube Dispensing Valve
Disposable Fluid Path
- Disposable valve tube and feed tubes
- Suitable for low viscosity fluids
- Ideal for two-part epoxies and cyanoacrylate adhesives
- Simple to use and maintain
Description

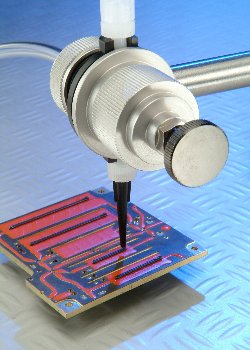

The IJF 710PTNM Pinch Tube Dispensing Valve is engineered for
precise control of semi-viscous liquids including mixed two-part component
fluids and cyanoacrylate adhesives. The only part
of the valve making contact with the fluid being dispensed is the pinch tube
assembly, which is easily replaced and disposable.
Operation
The 710PTNM Pinch Tube Dispensing Valve provides an infinite degree of control
for continuous micro-shot applications of low to semi-viscous materials,
like superglues, anaerobic adhesives, UV curing adhesives, solvents, inks,
paints, activators and primers.
When "closed", a molded polyethylene tube assembly (supplied) is pinched shut. When air is applied to the valve by the valve controller, the pinch is relieved and material flows. This may be a timed shot if desired, or manually controlled. Flow rate can be controlled by an adjustment screw.
Replaceable pinch tube assembly

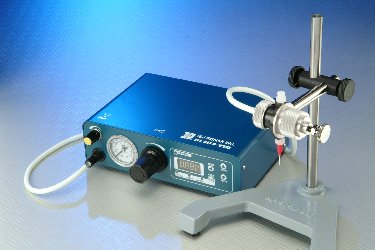

Material can be fed to the valve from syringes, cartridges or pressure pots. One end of the pinch tube assembly has a female luer lock fitting which accepts our full range of dispensing tips. The valve can be controlled from our dispensers like the IJF DSPE-501A or the IJF SL101.
| Ordering information | ||
| Part number | Description | |
| IJF710PTNM | Pinch Tube Dispensing Valve | |
| IJF580037A | Pinch Tube Assembly - polyethylene - 0.10" ID | |
| IJF580038 | Pinch Tube Assembly - polyethylene - 0.07" ID | |
| IJF580047A | Fluid line - polyethylene - 0.07" ID x 24" long - fittings included | |
| IJF580047A-10-18 | Fluid line - polyethylene - 0.10" ID x 18" long - fittings included | |
| Fluid line - polyethylene - 0.10" ID x 24" long - fittings included | ||
| Fluid line - polyethylene - 0.10" ID x 36" long - fittings included | ||
| IJFDSPE-501A | Dispenser | |
| IJFSL101 | Digital dispenser | |
 |
See also! Pressure Pot Dispenser - ideal for cyanoacrylate adhesives Professional Cyanoacrylate Adhesives
|
 |
Additional printed catalogue or brochure available |
 |
Obtain more information, samples or literature |
 |
Contact details and how to order |
