PEN-VAC
Pumpless Vacuum Pickup

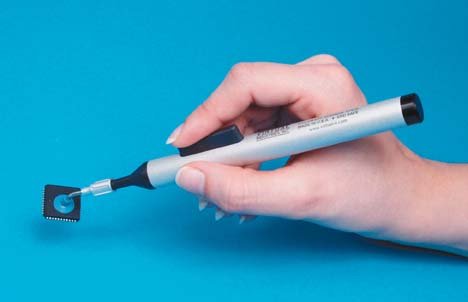

PEN-VAC is the first pumpless vacuum pickup available. It is totally self-contained and requires no vacuum pump, tubes or separate attachments, making it ideal for carrying around the factory or for field service applications. It is ideal for surface mount assembly or for any parts with a non-porous surface. Available in static safe versions which include static safe vacuum cups.

PEN-VAC
Part Number	Description	Size	Storage
VIRV8901-LMS	PEN-VAC	146mm long	Yes
VIRV8901-LMS-ESD	PEN-VAC Static Safe (silver)	146mm long	Yes

PEN-VAC Junior
Part Number	Description	Size	Storage
VIRV8920E-LMS	PEN-VAC Junior	127mm long	No
VIRV8920E-LMS-ESD	PEN-VAC Junior Static Safe (silver)	127mm long	No
PEN-VACS are supplied with 6 vacuum probe and cups assemblies: 2 x 3.18mm cups, 1 straight probe, 1 angled probe 2 x 6.35mm cups, 1 straight probe, 1 angled probe 2 x 9.53mm cups, 1 straight probe, 1 angled probe

HANDY-VAC
A low cost, ESD-safe vacuum handling tool. Operates very similar to a tweezer. Simply squeeze the vacuum bulb, place the soft suction cup on the part to be handled, then relax your squeeze and the part is firmly gripped. A second squeeze releases the part.

BULB-VAC
A low cost, ESD-safe vacuum handling tool. Operates very similar to a tweezer. Simply squeeze the vacuum bulb, place the soft suction cup on the part to be handled, then relax your squeeze and the part is firmly gripped. A second squeeze releases the part.

See also!  Vacuum cups and accessories  PAC-VAC battery operated self contained unit
