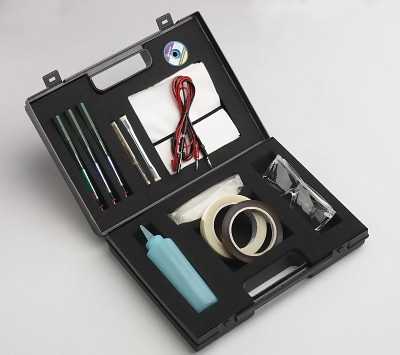

Gold Contact Plating Repair Kit
- Comprehensive kit
- Includes detailed procedural instructions
- Replacement consumable items easily available
- Meets IPC-7711/72A Rework and Repair Guide, section 4.6.3
Description
The IPS CRK-01 Gold Contact Plating Repair Kit is a complete system for the rework and re-plating of damaged gold contacts on printed circuit boards. Contacts may require re-plating if they become contaminated with solder or are scratched during handling. Other applications may arise when the plating on the contacts does not meet the minimum thickness specification, or the specification changes.
The IPS CRK-01 Kit features our popular Plating Pens. In addition, included are all the consumables required to perform the re-plating, as well as a full, detailed procedure. Everything is housed in an ESD safe conductive case. All consumable items are available separately.
| IPS CRK-01 Gold Contact Plating Repair Kit Contents | ||
| Part No | Description | Quantity |
| HUN PL-1002 | Absorbent Pen | 1 |
| HUN PL-1006 | Nickel Pen | 1 |
| HUN PL-1003 | 24k Gold Pen | 1 |
| HUN PL-1001 | Connector Cables | 1 set |
| IPS ER-01 | Eraser | 1 |
| IPS ER-02 | Eraser Refill | 1 |
| IPS GL-01 | Antistatic Gloves | 5 pairs |
| IPS SG-01 | Safety Glasses | 1 |
| INT 701-012 | Kapton Masking Tape | 1 |
| INT 871 | Plating Testing Tape | 1 |
| TEC 1821-5F | Desoldering Braid 1.5mm | 1 |
| TEC 1822-5F | Desoldering Braid 2.2mm | 1 |
| TEC 1610PK | IPA Cleaning Wipe | 5 |
| TEC 2032 | Cleaning Brush | 1 |
| RAR-WB-8-ESD | ESD Safe Water Bottle | 1 |
| TEC 2357-100 | Absorbent Wipe | Pkg 100 |
| Conductive Case with Conductive Inserts | 1 | |
| Procedural Instructions | 1 | |
Also required but available separately is a suitable Power Supply Unit (variable DC capable of supplying up to 12 volts at 0.1 amps).
The IPS CRK-01NP Gold Contact Plating Repair Kit has the same contents as above, but without Plating Pens and Connector Cables.
Other Information
A copy of the
IPS CRK Procedural Instructions for this product is downloadable in pdf format (58Kb).
 |
See also! Professional printed circuit board repair kit Overcoat pens, for repairing or replacing permanent solder resist
|
 |
