IJF SV1000SS Stainless Steel Spray Valve for Low Viscosity Materials

How to Buy
1 2

About IJF SV1000SS Stainless Steel Spray Valve for Low Viscosity Materials

The Fisnar SV1000SS stainless steel spray valve provides close tolerance spray dispensing of fluids of up to 1000 cps. The SV1000SS is constructed of stainless steel to prevent corrosion from volatile materials. With a spray angle of 12° and an operating frequency of 200 cycles/min, the SV1000SS is designed for spraying flux, polyurethane, paint, lubricants, inks and for coating and conformal coating applications.

The operating air pressure opens a needle valve allowing material to flow; a separate air line creates pressure in the air cap, atomising the fluid. The valves are adjustable by turning the stroke-adjust control at the rear of the valve; this will tune the spray pattern.

Features & Benefits

  • Suitable for very low viscosity fluids under 1000cps
  • Stainless steel fluid body construction
  • Stroke adjustment to fine-tune spray area
  • Nozzle design to prevent clogging

Operation

The valve is opened and closed by applying pressure to the ports using a valve controller (e.g. IJFSVC100-220 Valve Controller).

The valve maybe operated with as little as 70 psi.

Material is supplied to the stainless steel body through a 1/4″ NPT female port.

Fluid pressure may be as high as 100 psi.

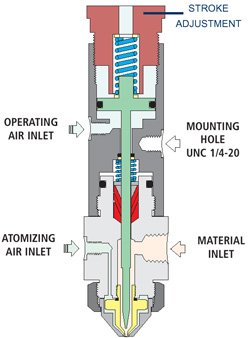

IJF SV1000SS stainless steel spray valve diagram

Specifications

Specification
Valve weight 290g
Operating air pressure 70-100 psi
Atomizing air pressure 1-30 psi
Fluid viscosity range Up to 1000 cps
Fluid pressure 1-100 psi (dependent on material viscosity)
Nozzle diameter 0.71mm
Flow rate Up to 28cc/second
Operating frequency Over 200 cycles/min
Spray angle 12°
Spray pattern Circular (conical)
Operating air inlet 10-32 thread with push fitting for 1/4 tube
Atomizing air inlet 10-32 thread with push fitting for 1/4 tube
Material inlet 1/8 NPT with compression fitting for 1/4 tube

Ordering Information

Part number Description
IJFSV1000SS Stainless steel spray valve
FISVC400 VC400 Spray valve dispense controller
