About Born2Bond Light Lock UV Cyanoacrylate Adhesives

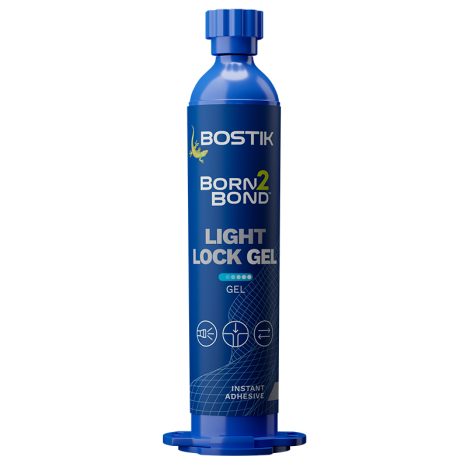

Born2Bond™ Light Lock HV and Born2Bond™ Light Lock Gel are low-odour, low-blooming, dual-cure, UV cyanoacrylate adhesives. The first odourless, light-curing cyanoacrylate adhesive technology. They are designed for bonding applications that require fast fixturing, coating or surface cure. Born2Bond Light Lock cyanoacrylate adhesives (CAs) are curable both by conventional CA mechanisms (usually by exposure to surface moisture) and UV/visible light. The UV- and visible-light cure sensitivity allows rapid bonding through transparent parts and quick curing of exposed fillets or areas, while the “instant” CA bonding capability ensures fast interfacial cures.

The Born2Bond Light Lock series of UV cyanoacrylate adhesives are ISO 10993-5 and ISO 10993-10 tested and are suitable for consideration in the assembly of medical devices.

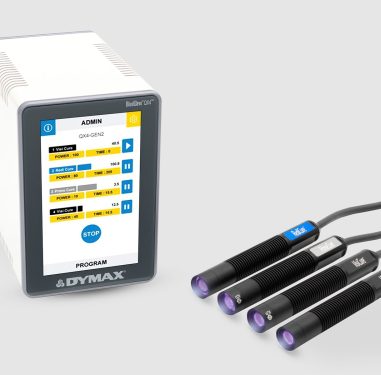

Specific UV wavelength is not critical – the useful range is from 365nm to 430nm and LED-based technology is acceptable. We have found that a 405nm lamp with an output intensity of 30mW/cm2 is suitable for a fast cure.

Features & Benefits

  • Dual cure formulation: instant and light cureBorn2Bond Light Lock UV Cyanoacrylate Adhesive Application
  • Fast light cure of exposed fillets or squeeze out
  • ISO 10993 tested and suitable for consideration in the assembly of medical devices
  • Odourless and low blooming
  • Non-irritating, non-lachrymatory
  • Safe to use – no hazard symbols on the label
  • Dry-to-touch, tack free surface cures
  • Fixture time in 60s (without light exposure)
  • Curable with low power visible or long wave UV light in less than 5 seconds
  • Available in high viscosity and gel formulations

Applications

  • Bonding, repair, coating, infilling
  • In electronics manufacturing: ruggedising, wire tacking, encapsulating, insulation, coating
  • In medical device manufacturing: plastic and/or metal bonding
  • Glass to metal bonding for jewellery, watches, perfume and liquor bottles

Specifications

Typical properties Born2Bond Light Lock HV Born2Bond Light Lock Gel
Colour Transparent Transparent
Viscosity (cps) 600 – 900 30,000 – 45,000
Gap Fill (mm) <10 <10
Fixture Time (sec) 30 – 90 30 – 90
Bond Strength (MPa) 6 5
Temperature Use Range (°C) -40 to 80 -40 to 80
Refractive Index (ABBE) 1.48 – 1.49 1.49 – 1.50
Glass Transition Temperature (°C) 92 94
Volume Resistivity (Ohm.m) 1.8·1013 1.8·1013
Specific Gravity (g/mL) 1.10 1.12

Selector Guide

Substrate Born2Bond Light Lock HV Born2Bond Light Lock Gel
ABS
Acrylonitrile-butadienestyrene
PC
Polycarbonate
PC/ABS
Blend of PC and ABS
PE
Polyethylene
(with Primer)
PMMA
Poly(methyl methacrylate)
PP
Polypropylene
(with Primer)
PPO
Poly(phenylene oxide)
(with Primer)
PS
Polystyrene
PS
Polystyrene
(with Primer)
PU
Polyurethane
(with Primer)
PVC
Polyvinyl chloride
TPU
Thermoplastic polyurethane
(with Primer)
AL
Aluminium
Coated AL
Powder coated or
anodized aluminum
Glass
Glass
Si
Silicone
(with Primer)
SUS
Stainless steel
Mild Steel
GBMS
Grit blasted mild steel

Key:  = Moderate    = Good   = Excellent

Other Information

Find out more about the technology behind the Born2Bond Light Lock by reading our technical bulletins and white papers:

All Downloads

Filename Size Download
Born2Bond Light Lock HV Technical Data Sheet 0.42MB
Born2Bond Light Lock Gel Technical Data Sheet 0.42MB
Born2Bond Primer Technical Data Sheet 0.35MB
Managing blooming in an adhesives process 0.31MB

Ordering Information

Part number Description Packaging
B2B30615137 Born2Bond Light Lock cyanoacrylate adhesive – high viscosity 20g tube
B2B30615142 Born2Bond Light Lock cyanoacrylate adhesive – high viscosity 500g bottle
B2B30615139 Born2Bond Light Lock cyanoacrylate adhesive – gel viscosity 20g tube
B2B30615440 Born2Bond Primer 30ml bottle




Next Steps

Our technical sales team are on hand to discuss your application requirements. Click here to get in touch.

Find out more information on how to purchase.

  • Last updated: October 2020
  • Version: 1.2

Statements, technical information and recommendations contained herein are based on tests we believe to be reliable but they are not to be construed in any manner as warrantees expressed or implied. The user shall determine the suitability of the product for his intended use and the user assumes all risk and liability whatsoever in connection therewith.
