- Reliable, reusable, accurate
- Portable
- Hand held
- Dispenses a wide range of fluids
- Adjustable dot size
- Compact and lightweight

|
|
Description

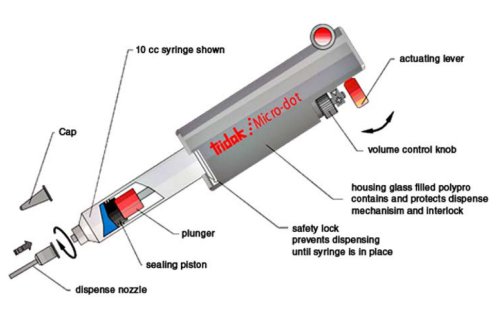

The Tridak Micro-Dot Manual Syringe Dispenser delivers accurate and consistent fluid deposits from pre-packed 10ml disposable syringes or dispensing barrels. This portable syringe dispenser can be set to dispense a wide range of liquid shot volumes. Once a volume is set, it can be repeated indefinitely with great accuracy. The Micro-Dot dispenser is light weight, thumb actuated, and can be used in any environment. Smooth flow tapered dispensing tips are recommended for achieving the most accurate shot size.
The Micro-Dot Manual Syringe Dispenser combines the efficiency of disposable syringes with a precise, repeatable, reusable, manually-activated delivery device.


Features & Benefits
- Hand held, portable dispenser with positive displacement accuracy
- Uses a 10ml disposable dispensing barrel
- Compact, portable and light weight
- Can dispense a wide range of materials from low to high viscosities
- Adjustable dot size
- Safety lock to prevent accidental actuation
- Thumb pressure action
| Specifications |
| Shot range - minimum |
approx 0.003ml (for a 400cps material with 25 gauge smooth flow tapered dispensing tip) |
| Shot range - maximum |
approx 0.170ml (for a 400cps material with 14 gauge smooth flow tapered dispensing tip) |
| Weight |
81.3g |
| Ordering information |
| Part number |
Description |
| TRISTA0600-1000 |
Micro-Dot Manual Syringe Dispenser |
Other Information
For most accurate dispensing it is recommended the Micro-Dot Manual Syringe Dispenser is used with a smooth flow tapered dispensing tip.
 |
