UV Curing Flood Lamp
- Moderate intensity long wave UV
- Economically priced
- Handheld or mounted
Description

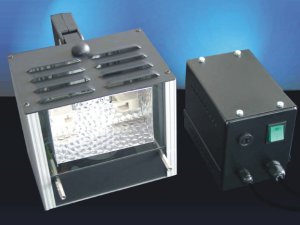

The INTERTRONICS IUV100 is a moderate intensity UV lamp designed for small scale or mobile use. It consists of a power supply box and a lightweight lamp unit which can be handheld or fixtured. It provides good UV curing intensity at an economical price, thus being quite cost effective.
Applications
- Curing of UV reactive adhesives and compounds
- Depending on the adhesive, it provides good interfacial cures on structures with glass, plastic and metal substrates
- Production and repair of plastic parts with UV curing polyester resins
- Repair of stereo lithography or 3-D models
Please contact for application advice. We provide a comprehensive range of stronger UV curing lamps if required for faster or deeper cures, as well as a full range of UV and UV/visible light curing adhesives.
| Specifications | |
| Lamp power output | 100 W |
| Emission spectrum | Long wave UVA |
| Intensity (max at the bulb) | 120 mW/cm2 UVA |
| Lamp unit (l x w x h) | 230 x 160 x 160 mm |
| Power supply box (l x w x h) | 150 x 100 x 130 mm |
| Lamp unit weight | 1.5 kg |
| Power supply box weight | 2.5 kg |
| Input voltage | 240 V |
 |
See also! UV curing glass bonding adhesives UV & visible light curing systems & lamps Light curing and UV curing adhesives
|
 |
