Cartridge Dispensing Valve
- Suitable for many types of materials

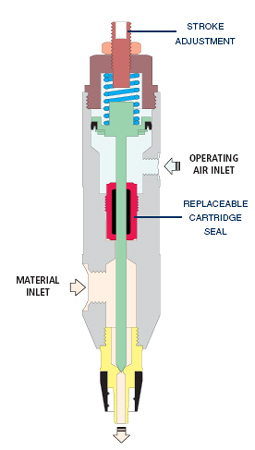

- Air and material inlets are aligned for close side-by-side mounting of multiple valves
- Stroke adjustment to fine-tune shot size
- Seals are in a replaceable cartridge for simplicity of maintenance
- Microshot deposits
- Light weight, can be used hand-held
Description
The IJF CV629 Cartridge Dispensing Valve is a pneumatically
operated valve designed for precision dispensing of all types of fluids or
liquids, such as solvents, oils, silicones, adhesives, UV adhesives, inks, etc.
The system can be integrated into an automatic dispensing
robot or
used as a fixed bench-mounted dispensing valve. Since it has a light weight
design, it can be used hand-held. It is suitable for high cycling, automated
dispensing applications.
Operation
The valve is opened by air pressure and closed by a return spring when air pressure
is released. Applying a minimum of 70 psi (5 bar) air pressure to the air inlet will open the valve. Fluid is
supplied to the material inlet through a 1/8 BSPP port.
Shot sizes may be fine tuned by turning the adjustment screw at the top of the valve; hence the CV629 valve is recommended for applications where micro deposits are required. Shot size and flow rate are controlled by the tip size, fluid pressure and the duration that the valve is open.

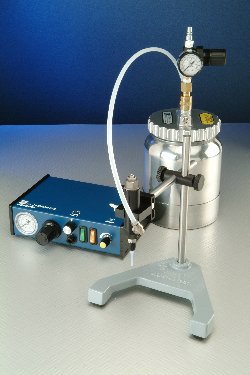

The model IJFDSPE501 is a suitable controller for the CV629 valve. Maintenance is straightforward, because the seals are in a easily replaceable cartridge.
Applications
- Beads, sealants
- Potting, filling, shielding
- High precision small deposits
- High pressure or high viscosity materials
| Specifications | |
| Weight | 135 gm |
| Air pressure | 70 to 85 psi (5 to 6 bar) |
| Maximum fluid pressure | 300 psi (21 bar) |
| Air inlet | M5 thread with push-in fitting for 6mm OD tube |
| Material inlet | 1/8 BSPP with push-in fitting for 6mm OD tube |
| Material outlet | Luer lock adapter, accepts our full range of dispensing needles and tips |
| Ordering information | ||
| Part number | Description | |
| IJFCV629 | Cartridge valve | |
| IJFDSPE501 | Automatic liquid dispenser 220V CE | |
 |
