Dispensing Robot
Automatic Application of
Adhesives, Coatings, Gaskets, Sealant, Inks
- Dots, lines, arcs and circles
- Adhesives, coatings, gaskets, potting, filling and shielding
- Resolution 0.001mm/axis
- Continuous path motion and point to point
- Step & repeat copy functions
- Automatic offset calculations
- Quick "Fluid Purge" button
- No computer skills required
- 100 programs, 4,000 points per program
- Software tip alignment routine for quick program offsets when changing dispensing tips
- USB connector allows system updates and program interchange between robots
- Fast, accurate and reliable 24 hours a day
Description

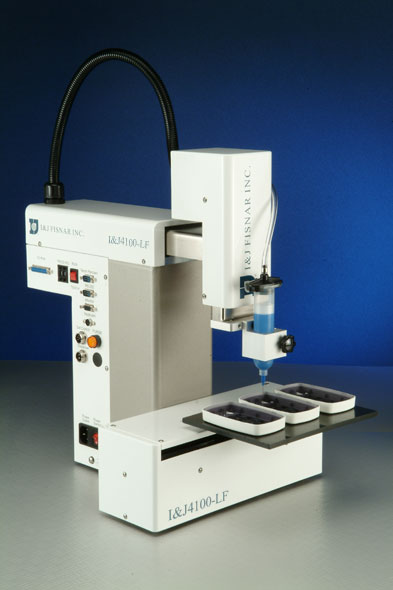

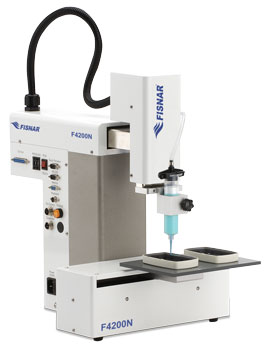

The Fisnar F4200N is a compact and economically priced benchtop
robot. Designed for manufacturing, medical and laboratory environments
requiring a streamlined, robust and easily maintained machine. This robot
will support most light dispensing applications that require a high performance
standard. The bench space reduction is an additional benefit. Programming
is simply carried out by a teach pendant (included) using the industry's
leading dispensing software that walks the user through step-by-step instructions
to create a sophisticated dispensing operation in minutes.
The Fisnar 4200N has the smallest footprint in the Fisnar series of desktop dispensing robots, making it one of our most popular dispensing machines, with an unbeatable combination of price and performance.
 |
Applications
- Adhesives
- Form-in-place (FIP) gaskets
- Potting
- Coating
- Filling
The automation of any manual bench dispensing application can be easy to justify, with a quick return on investment (ROI). By virtue of its very competitive pricing, the F4200N provides a significant cost saving when compared to existing bench robot systems.
The compact Fisnar F4200N handles a dispensing area of 200mm x 200mm and is capable of storing up to 100 different programs. Step-by-step intuitive instructions simplify job creation tasks, allowing a program to be entered and running in minutes. A 16-channel I/O interface provides for communication with external devices for secondary applications and multiple dispensing equipment components. An optional Windows software package with a DXF file converter is available for programming from a computer. A compact, robust, heavy duty design (cast construction) provides stability when working to fine tolerances.
The robot is a three-axis design and is capable of interfacing with any INTERTRONICS dispensing equipment. The F4200N can use simple dispensing barrels, controlled by a pneumatic dispenser, or a dispensing valve, fed from some form of reservoir. We provide a full turnkey solution. Please contact us for a full discussion of your requirements.
Programming
Programming is simple with easy to follow English language instructions. Commands
are followed and responses entered by a teach pendant. An LCD display prompts
the user for a data input and once confirmed, automatically displays the next
instruction. By this method a program can be created quickly and simply.
| Specifications | |||
| X/Y/Z working area | 200 / 200 / 50 mm | ||
| Load - worktable/tool | 3kg / 1kg | ||
| Maximum speed - X&Y/Z | 500 / 200 mm/s | ||
| Repeatability | +/- 0.02mm per axis | ||
| Resolution | 0.001mm per axis | ||
| Data memory | 100 programs, 4000 points/program | ||
| Drive system | Micro stepping motor, 3-phase | ||
| Motion control | PTP (point to point) & CP (continuous path) | ||
| Interpolation linear/circular | 3 axis | ||
| Teaching method | Teach pendant | ||
| I/O signals | 8 inputs / 8 outputs | ||
| External interface | USB/RS232 | ||
| Power supply | Auto switching AC 95-132V, AC 180-250V | ||

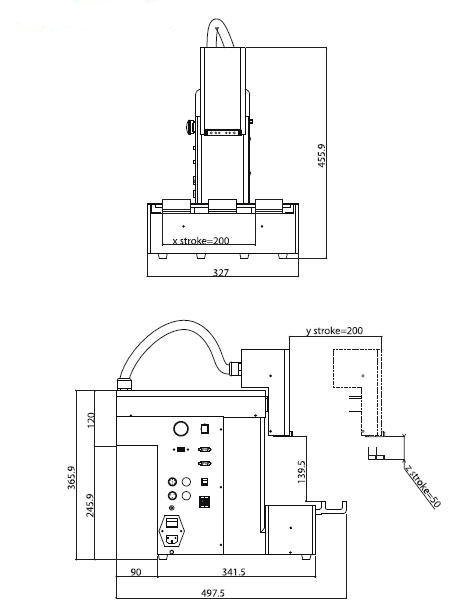

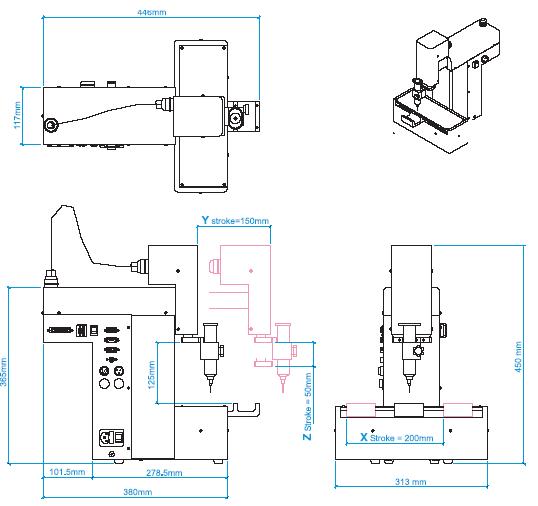

| Dimensions WxDxH | 327 x 500 x 450 mm | ||
| Weight | 20 kg | ||
| Fully compliant to CE standards with I&J Fisnar 4000 series unique and easy to use dispensing software. | |||
| Ordering information | ||
| Part number | Description | |
| IJFF4200N | Benchtop dispensing robot | |
| IJF562008C | External start box - for use with safety enclosures | |
| IJFF4000N-WIN | Windows® software package (optional) | |
| Enclosure | A range of safety enclosures are available with light curtains, interlocked doors, etc | |
