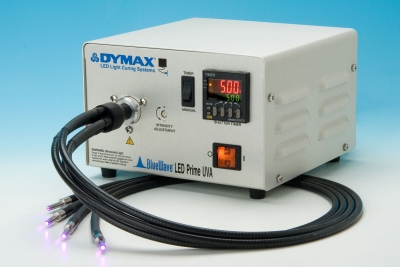

BlueWave LED Prime
UVA Spot Curing System
LED Curing Lamp
- Constant output intensity for thousands of hours
- High power LED source
- Instant on/off
Description
The DYMAX BlueWave LED Prime UVA Spot Curing System offers many advantages over conventional spot curing's systems including, no bulbs
to change, cool cures, no warm up and constant intensity for thousands of hours. It generates curing energy using high intensity LEDs. This system
emits maximum light intensity output through a 5mm diameter lightguide, and allows users to adjust intensity output from 0% to 100%. The relatively

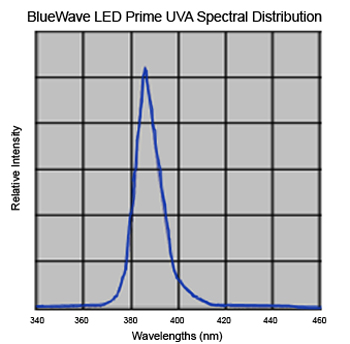

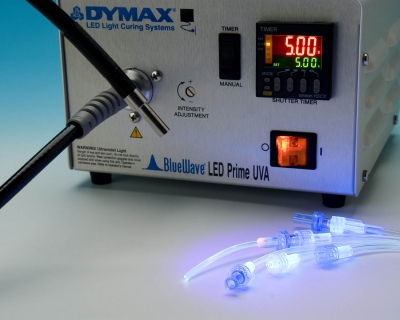

narrow frequency band produced by LEDs generates cooler curing temperatures. The BlueWave LED Prime UVA is excellent for spot curing of various coatings,
as well as adhesive bonding of polycarbonate, PVC, PET, metal, glass and many other substrates.
Features & Benefits
- Optimised design for curing a wide range of formulations
- Constant intensity
- Low cost to purchase and maintain (high ROI)
- Cool cures - ideal for thermally sensitive substrates
- Variety of compatible lightguide configurations
- Useful LED life of over 50,000 hours
- Intensity adjustment feature from 0% to 100%
- Instant on/off (no warm up)
- Small form factor
- Foot switch or PLC controlled exposure time
| Specifications | |
| Output | >15 W/cm² adjustable from 0% to 100% |
| Power requirements | 100-240V, 47-63 Hz (auto ranging) |
| LED timer | Digital LCD timer up to 99.99 seconds: manual and timed exposure |
| LED activation | Foot switch or PLC |
| Cooling | Single filtered fan: thermally controlled to maintain proper LED temperature |
| Hour meter | Digital LCD |
| Housing dimension | 8.375" x 8.75" x 5.5" (21.3 cm x 22.2 cm x 14.0 cm) |
| Weight | 5.40lbs (2.45 kg) |
| Ordering information | ||
| Part number | Description | |
| DYM40322 | DYMAX BlueWave LED Prime UVA Spot Curing System | |
| DYM5720 | Lightguide 5mm x 1m liquid filled | |
Other Information
BlueWave
LED Prime UVA Product Data Sheet - pdf format (115Kb)- ACCU-CAL
50-LED Radiometer - pdf format (89Kb)
Essential process monitoring tool
 |
Our Technical Bulletins & Articles page has links to:
- LED Curing of Light-Curable Materials - Unraveling the Myths and Realities - by Gary Zubricky and Kirk Middlemass, DYMAX Corp- pdf format (299Kb)
 |
See also! BlueWave 200 UV Spot Light - very high intensity BlueWave LED Visible Light Spot Curing System UV Adhesives for Medical Device Assembly
|
 |
