ACCU-CAL™ 50
Smart UV Intensity Meter/Radiometer
- Simple to operate
- Compact, hand-held, battery operated instrument
- Set screw locks lightguide in place for accuracy and repeatability
- PTB and NIST traceable
Description
Consistent UV curing requires periodic monitoring of UV intensity or dose.
The DYMAX ACCU-CAL 50 Radiometer is simple to operate and
offers repeatable measurement of UV light. The ACCU-CAL 50 can measure
UV light emitted from lightguides (3mm, 5mm and 8mm), UV flood systems
and UV conveyors. With a spectral sensitivity of 320nm to 390nm (UV-A),
the ACCU-CAL 50 measures intensities from 1mW/cm² to
40 W/cm².
A specially designed detector assembly protects the photo-sensor from the high temperatures sometimes associated with modern high intensity UV curing spot lamps, which can lead to inaccurate measurements. Fixtures are supplied which lock UV lamp lightguides into position over the sensor, giving accurate and repeatable measurements. The ACCU-CAL 50 features an easy-to-use instruction set with a simple, clear display and three button operation.
 |
 |

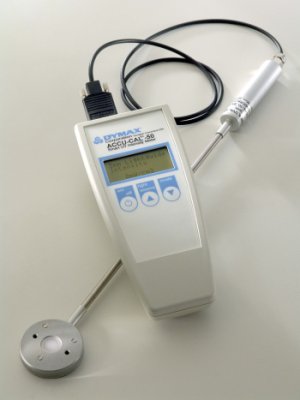

| ACCU-CAL 50 for floods and conveyors | ACCU-CAL 50 with accessories for lightguides |
Three reasons to use a UV radiometer
- Maintain a light curing process
A radiometer measures whether a light curing system is providing intensity above the "bulb change" intensity. Radiometers provide the same monitoring control for light curing processes as thermometers do for thermal processes. - Provide an operator friendly light curing process
The ACCU-CAL 50 is sufficiently sensitive to measure the intensity of stray or reflected UV light (as little as 1mW/cm²). A rule of thumb is that operators should not be exposed to more than 1mW/cm². For reference, UV (320-395nm) intensity on a sunny day can range from 2-6mW/cm². - Measuring transmission rates through substrates
A radiometer can be used to measure the transmission rates of various wavelengths through substrates which absorb UV and/or visible light. To assure an effective curing process, it is critical to measure the light intensity reaching the adhesive or coating through the intervening substrate.
| Specifications | |
| Spectral sensitivity | 320nm to 390nm |
| Intensity range | 1mW/cm² to 40 W/cm² |
| Resolution | Intensity: 1mW/cm² to three significant digits Dose: 1mJ/cm² |
| Calibration period | 12 months |
| Operating temperatures | Optometer (instrument): +5 to +40°C Detector (sensor): 120°C continuous, 200°C peak |
| Measurement modes |
Intensity: mW/cm² and W/cm² Peak intensity: mW/cm² and W/cm² Dose: J/cm² |
| Light sources | Light guides (3, 5 & 8mm dia) Flood lamps Conveyors |
| Power supply | 2 x AA batteries |
| Battery life | 250 hours (automatic shut off after 1 hour) |
| Detector (sensor) dimensions | Sensor aperture: 9mm Diameter: 37mm Thickness: 8mm Cable length: 1m |
| Optometer (instrument) dimensions | 120 x 65 x 23mm |
| Ordering information | ||
| Part number | Description | |
| DYM39561 | ACCU-CAL 50 for flood lamps and conveyors |
Complete radiometer (without lightguide adaptors). Includes storage/carrying case. |
| DYM39560 | ACCU-CAL 50 for spot and flood lamps and conveyors |
Complete radiometer with lightguide adaptors (3, 5 & 8mm). Includes storage/carrying case. |
| DYM39554 | Flood to spot adaptor kit | Includes three lightguide adaptors (3, 5 & 8mm) and a lightguide simulator |
| DYM39556 | Lightguide adaptor 3mm | Fits 3mm lightguides (5mm OD) |
| DYM39557 | Lightguide adaptor 5mm | Fits 5mm lightguides (7mm OD) |
| DYM39558 | Lightguide adaptor 8mm | Fits 8mm lightguides (10mm OD) |
| DYM38408 | Lightguide simulator | 5mm lightguide simulator with standard 'D' connector, suitable for DYMAX BlueWave lamps and others |
Other Information
 |
Download the data sheet for the  DYMAX
ACCU-CAL 50 - pdf format (292Kb). |
 |
See also! UV curing flood lamps Hand held UV flood BlueWave
200 UV spot light - very high intensity
|
 |
Additional printed catalogue or brochure available |
 |
Obtain more information, samples or literature |
 |
Contact details and how to order |
