Nikko-Rack
 PCB Racks & Magazines
Additional Information

Product Specifications
 The following list outlines all our standard Nikko quick adjustable pcb magazines, racks and board handling equipment. We offer many models to accommodate all your board sizes and loader/unloaders. Please refer to the chart below to select the standard model best suited for your application.
Dimensions




Model No. #1
Base		 #2
AJ		 #3
Temp		 Outer Dimension Card Guide Ref. Position Weight
L W H AJ C D E P A B
NKAJ-0525N M Rack & Pinion 60 deg C
140 deg F		 355 320 563 50-250 353 3.0 5.0 10.0 34 34 5.5
13.98 12.60 22.17 1.97-9.84 13.90 0.12 0.20 0.39 1.34 1.34 12.13
NKAJ-0525N2 P Rack & Pinion 60 deg C
140 deg F		 355 320 563 50-250 353 3.0 5.0 10.0 34 34 4.1
13.98 12.60 22.17 1.97-9.84 13.90 0.12 0.20 0.39 1.34 1.34 9.04
NKAJ-0525N3 P Screw Bolt 60 deg C
140 deg F		 355 320 563 50-250 353 3.0 5.0 10.0 34 34 3.9
13.98 12.60 22.17 1.97-9.84 13.90 0.12 0.20 0.39 1.34 1.34 8.60
NKAJ-0525R M Rack & Pinion 135 deg C
275 deg F		 355 320 563 50-250 353 3.0 5.0 10.0 34 34 5.6
13.98 12.60 22.17 1.97-9.84 13.90 0.12 0.20 0.39 1.34 1.34 12.35
NKAJ-0525R2 P Rack & Pinion 135 deg C
275 deg F		 355 320 563 50-250 353 3.0 5.0 10.0 34 34 4.1
13.98 12.60 22.17 1.97-9.84 13.90 0.12 0.20 0.39 1.34 1.34 9.04
NKAJ-0525R3 M Screw Bolt 135 deg C
275 deg F		 355 320 563 50-250 353 3.0 5.0 10.0 34 34 3.9
13.98 12.60 22.17 1.97-9.84 13.90 0.12 0.20 0.39 1.34 1.34 8.60
NKAJ-0531R M Rack & Pinion 135 deg C
275 deg F		 535 380 570 50-310 530 3.0 5.0 10.0 34 41 10.8
21.06 14.96 22.44 1.97-12.20 20.87 0.12 0.20 0.39 1.34 1.61 23.81
NKAJ-0531RE M Rack & Pinion 120 deg C
248 deg F		 535 380 570 50-310 506 2.8 4.0 12.5 34 41 10.8
21.06 14.96 22.44 1.97-12.20 19.92 0.11 0.16 0.49 1.34 1.61 23.81
NKAJ-0733N M Rack & Pinion 60 deg C
140 deg F		 460 400 565 70-330 460 3.0 5.0 10.0 35 35 9.5
18.11 15.75 22.24 2.76-12.99 18.11 0.12 0.20 0.39 1.38 1.38 20.94
NKAJ-0733R M Rack & Pinion 135 deg C
275 deg F		 460 400 565 70-330 460 3.0 5.0 10.0 35 35 9.5
18.11 15.75 22.24 2.76-12.99 18.11 0.12 0.20 0.39 1.38 1.38 20.94
NKAJ-0539R M Rack & Pinion 135 deg C
275 deg F		 535 460 570 50-390 530 3.0 5.0 10.0 34 41 12.7
21.06 18.11 22.44 1.97-15.35 20.87 0.12 0.20 0.39 1.34 1.61 28.00
NKAJ-0546R M Rack & Pinion 135 deg C
275 deg F		 535 530 563 50-460 530 3.0 5.0 10.0 34 34 14.7
21.06 20.87 22.17 1.97-18.11 20.87 0.12 0.20 0.39 1.34 1.34 32.41

NKAJ-0525N
NKAJ-0525R
NKAJ-0525N2
NKAJ-0525R2
NKAJ-0525N3
NKAJ-0525R3
NKAJ-0525R
NKAJ-0531R
NKAJ-0539R
NKAJ-0546R
NKAJ-0733R



Board Dimensions

L=length, w=width, t=thickness

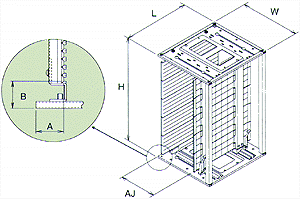

Magazine Dimensions and Reference Position

L=length, w=width, h=height, and aj (for magazine) a and b (for reference position)

Card Guide Dimensions

p=pitch, e=thickness clearance, d=edge support depth

Back to

Niko-Rack Page
Product index

April 2000
Version 1.0
