Nikko-Rack
 PCB Racks & Magazines

  • Excellent vertical rigidity
  • Width adjustments can be performed in 15 seconds
  • No tools required for width adjustments
  • Fits any size board and handling equipment

Why Nikko-Racks are unique
 Nikko-Racks employ a patented rack & pinion gear assembly which enables the magazines to be adjusted to varying widths, thereby accommodating different size pcb's.

Quick and simple rack adjustment

arack01.jpg arack02.jpg

Release, Set Lock
- with the Nikko-Rack patented quick-width adjustment.

Excellent Vertical Rigidity
- card guide remains absolutely parallel every time.

Easy, Infinite Adjustments
- fits any size boards and handling equipment

arack04.jpg arack05.jpg arack06.jpg

1. Release the lever
2. Set the width
3. Lock the lever

It's that easy with Nikko-Rack patented quick-width adjustment. The unique "smart rack" keeps the card guide remaining absolutely parallel while providing excellent rigidity. The reason is quite simple... our rack and pinion assembly allows infinite adjustments to any size board and our racks fit all board handling equipment.

Card quides designed for reliability

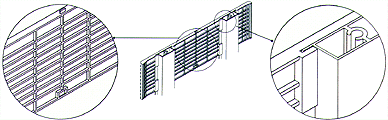

The Nikko-Rack card guides are assembled in five separate sections to add both strength and to simplify ease of replacement if needed.


Each card guide is ribbed for strength, resistance to warpage, and to dissipate heat. Each card guide is attached to the supporting hat plate with designed tolerances that can absorb any stress thereby reducing warpage or bending.
