Automatic Liquid Dispenser
Adhesive Dispenser
- Timing intervals from 0.01 to 31 seconds
- Versatile design for many dispensing applications
- Barrel "suck-back" ensures no dripping on low viscosity materials
- Ready to use - everything included
Only
£349.00!
Description
The IJF JBE1113 Automatic Liquid Dispenser, with its versatile
design, is perfectly suited to a wide variety of dispensing applications,
making it our most popular dispenser. A variable timed interval from
0.01 seconds to 31 seconds allows for dispensing from microdot deposits to large
potting and filling. Adjustable barrel suck-back ensures control of the dripping
associated with dispensing of low viscosity materials.
 |
||
| The JBE1113 dispenses in continuous beads or in timed shots at the flick of a switch. |
The IJF JBE1113's high speed control of up to 600+ cycles per minute with its repeat tolerances of 0.1% make it an excellent choice for dispensing a wide range of assembly materials such as solder paste, masking materials, potting materials, encapsulants, UV curable materials, silicones, oils and adhesives, solvents, greases, liquid gasket material, RTVs and many more.
All set up hoses and fittings, along with barrels and tips, are included, making the unit ready to use right out of the box.
Used in the following industries:
- Automotive
- Semiconductor
- Loudspeakers
- PCB assembly
- Medical devices
- Jewelry
- Sensor manufacturing
- Connectors
- Flat panel displays
- SMT
- General automation
- and many more!
 |
|
 |
| Specifications | |
| Size | 22 x 21 x 6.7 cm |
| Digital timer | User programmable intervals (dip switch) 0.01-1, 0.1-10, 0.2-20 and 0.3-31 seconds |
| Cycle initiation | Maintained or momentary |
| Input voltage | 240V ac |
| Internal & foot pedal voltage | 24V dc |
Repeat tolerance |
0.1% |
| Cycle speed | 600+/minute |
| Air input | 70-100 psi (5-7 bar) |
| Air output | 1-100 psi (0.1-7 bar) |
| Barrel suck-back feature | |
| The IJF JBE113 requires compressed air to function | |

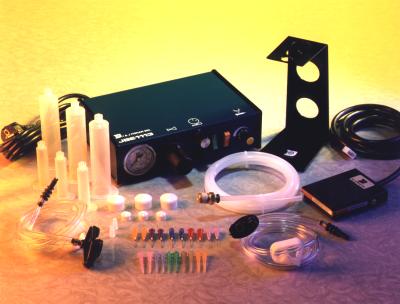

| Standard Accessories The IJF JBE1113 ships with these standard accessories; everything required to get up and running. |
|||
| Quantity | Description | Re-order Part No | Qty/Pkg |
| 1 | 220 Volt Power Cord | ITSBS1365A | 1 |
| 1 | Storage Stand | IJF560751 | 1 |
| 1 | Foot Pedal and Cord | IJF560027D | 1 |
| 1 | 30cc Barrel Adapter Assembly | FIS5601029 | 1 |
| 1 | 5cc Barrel Adapter Assembly | FIS5601027 | 1 |
| 3 | 30cc Barrels | FIS5601004 | 10 |
| 3 | 5cc Barrels | FIS5601001 | 10 |
| 2 | Barrel Tip Caps | FIS5601055 | 10 |
| 3 | 30cc PE Pistons | FIS5601023 | 20 |
| 3 | 5cc PE Pistons | FIS5601019 | 40 |
| 2 | 14 Gauge Tapered Tip | FIS5601269 | 25 |
| 2 | 16 Gauge Tapered Tip | FIS5601270 | 25 |
| 2 | 18 Gauge Tapered Tip | FIS5601271 | 25 |
| 2 | 20 Gauge Tapered Tip | FIS5601272 | 25 |
| 2 | 22 Gauge Tapered Tip | FIS5601273 | 25 |
| 2 | 21 Gauge Tip | FIS5601089 | 25 |
| 2 | 22 Gauge Tip | FIS5601090 | 25 |
| 2 | 23 Gauge Tip | FIS5601091 | 25 |
| 2 | 25 Gauge Tip | FIS5601092 | 25 |
| 2 | 30 Gauge Tip | FIS5601094 | 25 |
 |
