Automatic Liquid Dispenser
- Timer control
- No dripping on very low viscosity liquids
- Timing intervals from 0.01 to 31 seconds
- Large solenoid air exhaust
- Optional multiple barrel dispensing
- Optional "suck-back" gauge
Description
IJF DSPE-501A Automatic Liquid Dispenser features a larger internal
air solenoid recommended for operations that require an immediate and fast
reaction for de-pressurisation.
Examples include: collapsible toothpaste-type tube, caulking,
cartridge reservoirs and rotary-table operations. The higher volume exhaust prevents
post compression of materials contained in tubes, avoiding stringing. It is also highly recommended for controlling
dispense valves, where the fast response gives optimal control.
Options
- IJF DSPE-501A - Automatic Liquid Dispenser with high-volume air exhaust
- IJF DSPE-501A-4 - Dispenser with multiple barrel dispensing
- IJF DSPE-501A-TILL - Dispenser with "suck-back" gauge
IJF DSPE-501A - Automatic Liquid Dispenser with high-volume air exhaust
Features
- Dispenser timer
- Suitable for tube dispensing
- Barrel suck-back ensures no dripping
- Large solenoid air exhaust
| Specifications | |
| Size | 21.92 x 21.59 x 6.68cm |
| Dispense time | 0.01 - 31 seconds |
| Cycle | Momentary with time or continuously maintained |
| Voltage | 220 VAC |
| Internal voltage | 24 VDC |
| Air input | 70 to 100 psi (5 to 7 bar) |
| Air output | 1-100 psi (0.1 - 7 bar) |
| Standards | CE approved |
| Weight | 1.87kg |

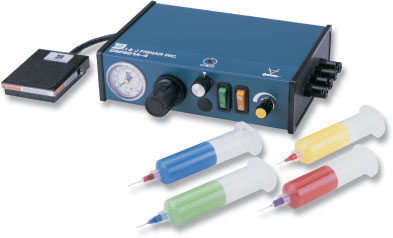

IJF DSPE-501A-4 - Dispenser with multiple barrel dispensing
Features
- One to four barrel dispensing
- Dispenser timer
- Barrel suck-back ensures no dripping
- Large solenoid air exhaust
| Specifications | |
| Size | 24.13 x 21.59 x 6.68cm |
| Dispense time | 0.01 - 31 seconds |
| Cycle | Momentary with time or continuously maintained |
| Voltage | 220 VAC |
| Internal voltage | 24 VDC |
| Air input | 70 to 100 psi (5 to 7 bar) |
| Air output | 4 outputs 1-100 psi (0.1 to 7 bar) |
| Standards | CE approved |
| Weight | 1.87kg |

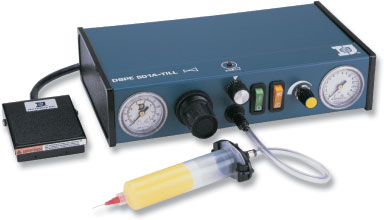

IJF DSPE-501A-TILL - Dispenser with "suck-back" gauge
Features
- Dispenser timer
- Suitable for tube dispensing
- Barrel suck-back ensures no dripping
- Large solenoid air exhaust
- Vacuum suck-back display
| Specifications | |
| Size | 26.67 x 20.95 x 6.68cm |
| Dispense time | 0.01 - 31 seconds |
| Cycle | Momentary with time or continuously maintained |
| Voltage | 220 VAC |
| Internal voltage | 24 VDC |
| Air input | 70 to 100 psi (5 to 7 bar) |
| Air output | 1-100 psi (0.1 to 7 bar) |
| Standards | CE approved |
| Weight | 1.93kg |
| Ordering information | ||
| Part number | Description | |
| IJFDSPE-501A | Automatic Liquid Dispenser with high-volume air exhaust | |
| IJFDSPE-501A-4 | Dispenser with multiple barrel dispensing | |
| IJFDSPE-501A-TILL | Dispenser with "suck-back" gauge | |
 |
See also! The JBE1113 Automatic Liquid Dispenser Fully automatic dispensing with robots
|
 |
Additional printed catalogue or brochure available |
 |
Obtain more information, samples or literature |
 |
Contact details and purchasing instructions |
