UV Curing Flood Lamps & Systems

Description
DYMAX UV Curing Systems use moderate- to high-intensity UV/visible light for the fast curing of UV adhesives, UV coatings and UV inks. A modular UV curing flood lamp consists of a power supply, reflector housing, and standard 400 Watt metal halide bulb. Shutter assemblies, mounting stands, UV shields, and additional UV curing bulbs are available to create a custom UV curing system.

UV curing flood lights and focused beam flood lamps can be used in a wide variety of industrial applications including UV bonding, UV sealing and UV encapsulating. DYMAX UV curing flood lamp systems are ideal for use in the automotive, electronic, optical, and medical device assembly industries. Optimise your productivity with clean, safe, fast UV and UV/visible light cures. DYMAX UV/visible light curing equipment can handle all your photocuring needs.

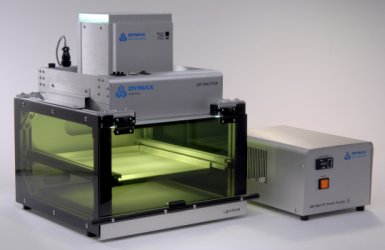

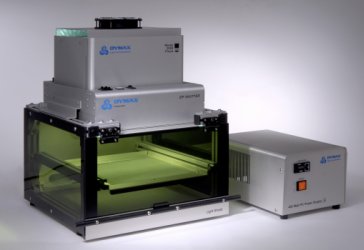

DYMAX 2000-PC with ZIP Shutter and Lightshield	DYMAX 5000-PC with ZIP Shutter and Lightshield

• Longer bulb warranty - 2,000 hours
• UV cures in 5-30 seconds
• 5" x 5" and 8" x 8" UV curing areas, or 1" x 6" focused beam
• Worker friendly UV flood lights
• Complete benchtop UV curing systems available
• UV flood lamps come with or without UV shielding and/or UV shutter assemblies
• UV curing lamps are easily integrated into existing automated assembly systems
• Longwave, shortwave and visible UV curing replacement bulb are available for unique UV curing applications
• Can be conveyor mounted
• Rugged brushed-aluminum construction

Lamp types
	2000-PC	5000-PC	1200-PC
	Flood	High intensity flood	Focused beam
Output power	400 Watt
Light	Filtered UVA flood	Unfiltered full spectrum UV flood	Unfiltered full spectrum UV focused beam
Typical intensity in the UVA range (320-390 nm)	75 mW/cm² measured 75mm from the bottom edge of the reflector housing	225 mW/cm² measured 75mm from the bottom edge of the reflector housing	350 mW/cm² measured 115mm from the bottom edge of the reflector housing
Curing area	20.3 x 20.3 cm	12.7 x 12.7 cm	2.5 x 15.2 cm
Reflector housing dimensions	22.9 x 26.7 x 19.1 cm	17.2 x 17.2 x 20.3 cm	22.9 x 26.7 x 19.1 cm

Modular
The curing flood lamps consist of a power supply, reflector housing and 400 Watt metal halide UV curing bulb. Accessories can be ordered with or retrofitted to the UV curing lamp after purchase, including shutter assemblies, UV shields and UV flood lamp stands.

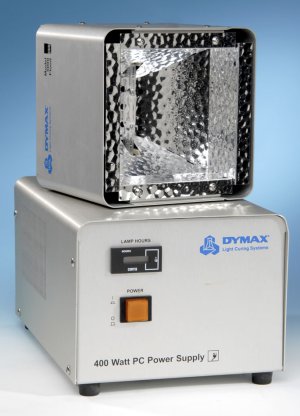

DYMAX 5000-PC Flood Lamp with power supply	Lightshield mounting stand	ZIP Shutter

Conveyors, integration & automation
INTERTRONICS offers conveyorised UV curing lamp systems (1, 2), and can offer other types of integration and automation. UV lamps can also be added to robotics.

Accessories
We have a comprehensive range of essential accessories and spares for your UV lamps, including:

• Radiometers
• Bulbs
• Stands, holders and shutters
• Safety eyewear

Trials & evaluations
Lamps are offered for demonstrations and trials, either at our Technology Centre or at customer premises. We also offer a rental program for extended trials and testing.

Other Information

•  Guide to UV Light Curing Systems - pdf format (519Kb)
•  UV Light Curing Flood Systems - pdf format (198Kb)

See also!  Light curing and UV curing adhesives  UV curing adhesives for medical device manufacture  Hand held UV flood lamp  UV Radiometer

	Additional printed catalogue or brochure available
	Obtain more information, samples or literature
	Contact details and how to order
