Instructions:
50ml Side-by-Side Double Syringe Cartridges

A 50ml side-by-side double syringe cartridge

1. Ensure that the material is at room temperature. If the material has been stored in a cold place (i.e. a warehouse in winter), it can be too thick to mix and dispense easily and correctly. Let it come to ambient temperature before use. Some materials will become too thin (too low a viscosity) to mix and dispense correctly if stored in a very warm place. Again, bring to room temperature before use. On the other hand, some materials which are quite thick (highly viscous) at room temperature, and therefore difficult to dispense, can be gently warmed prior to use. If in any doubt, please consult us or the material manufacturer.
2. Remove the cartridge from the packaging and place in the dispensing gun.

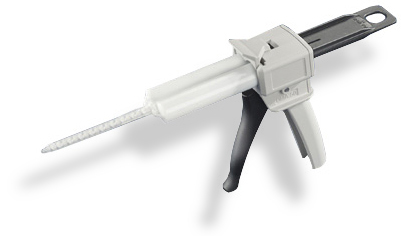

Cartridge in dispensing gun with static mixing nozzle attached

3. Holding the cartridge vertical with the cap at the top, unscrew the cap or break the seal.
4. Gently squeeze the dispensing gun trigger, and make sure that both of the material components are being pushed out evenly. Wipe off any excess material, and screw on the static mixing nozzle.


Static mixing nozzle



5. By squeezing the trigger, dispense the material components through the static mixing nozzle until they reach the end. It is recommended that the first 1-2ml from a new mixer be discarded (about 15cm of a 3mm diameter bead). By the use of the manufacturers' specified mixing nozzle, the material now dispensed from the tip will be adequately and properly mixed for use.
6. It is acceptable to store partially used cartridges with the static mixing nozzle attached. A new one will be needed next time the cartridge is used. Alternatively, remove the used static mixing nozzle, wipe off excess material and replace cap, being very careful to avoid any cross contamination.
