Rubber Modified
Epoxy Adhesive
- High performance
- High toughness
- Rubber adhesive
- High impact strength
- Flexibility
- Convenient packaging
Description
IRS2129 Rubber Modified Epoxy Adhesive is a high performance
black resin system. It is designed for the bonding of dissimilar materials,
including rubber. The flow of the material has been modified to prevent 'slump'
and cures to a semi-rigid finish, which is ideal to help prevent stresses
in components and the bonding of materials in a dynamic environment. A two part
system with a simple 1:2 mix ratio, it is supplied in a convenient side-by-side
double syringe cartridge, complete with static mixing nozzles.
Features
- Excellent adhesion to a variety of metals, rubbers, GRP, wood, glass
- Non-toxic
- Thixotropic
- High impact resistance
- Very good adhesive to plastics like ABS, PVC, PC, PMMA
- RoHS and WEEE compliant
| Specifications | |||||||||
| Mix ratio by weight | 0.6:1 | ||||||||
| Mix ratio by volume | 1:2 | ||||||||
| Viscosity m.Pa.s @ 25°C | Thixotropic | ||||||||
| Colour | Black | ||||||||
| Specific gravity | 1.01 | ||||||||
| Pot life | 20 minutes @ 20°C | ||||||||
| Cure schedule |
|
||||||||
| Typical properties | |||||||||
| Hardness, Shore A | 90 | ||||||||
| Temperature range | -50 to +140°C | ||||||||
| Thermal conductivity | 0.25 W/mK | ||||||||
| Tensile strength | 18 MPa | ||||||||
| Compressive yield strength | <10 MPa | ||||||||
| Coefficient of linear expansion | 80-100 ppm/C | ||||||||
| Volume Resistivity | 13 log10ohmm | ||||||||
| Electric strength | 22 kV/mm | ||||||||
| Water absorption (7 days @ 23°C) | 0.35% | ||||||||
| Lap shear adhesion | |||
| Aluminium to Aluminium | 17.8 MPa | ABS to ABS | 3.1 MPa |
| Copper to Copper | 14.7 MPa | Nylon 6 to Nylon 6 | 4.3 MPa |
| Stainless Steel | 17.3 MPa | Acrylic to Acrylic | 2.6 MPa |
Packaging

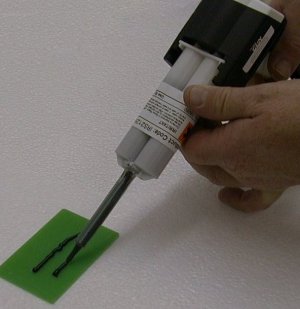

IRS2129 is available in a convenient side-by-side double syringe cartridge.
The IRS2129-50KIT contains a 50 gram cartridge of epoxy, a Syringe Gun and three static mixing nozzles. It is ideal for product evaluations or small quantity users.
| Part number | Description |
| Ordering information | |
| IRS2129-50G | Rubber Modified Epoxy Adhesive, Double Syringe Cartridge, 50 gram |
| IRS2129-200G | Rubber Modified Epoxy Adhesive, Double Syringe Cartridge, 200 gram |
| IDM805004 | Syringe Gun |
| IDM2N10 | Static Mixing Nozzle (pkg 10) |
| IRS2129-50KIT | Rubber Modified Epoxy Adhesive Kit Contains 50 gram cartridge of epoxy, a Syringe Gun and three static mixing nozzles |
Other Information
Our Technical Bulletins & Articles page has links to:
- Technical Bulletin: Instructions: 50ml Side-by-Side Double Syringe Cartridges
 |
