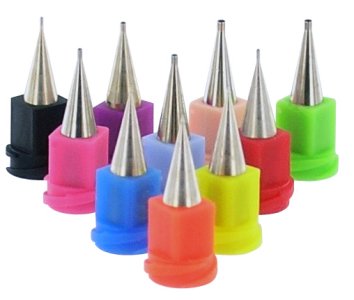

Micron-S Precision Nozzles
High Accuracy Dispensing Tips

Description
Micron-S Precision Nozzles are for high accuracy, micro-dot fluid dispensing. Micron-S Precision Nozzles have a Luer lock thread and can be used with any dispensing syringe, valve or pump. Very low resistance to fluid flow. Significant cost savings over specially machined dispensing nozzles, without sacrificing placement precision or deposition accuracy.

A primary design feature of this unique Luer lock dispensing nozzle is the streamline conical fluid path which delivers substantially higher fluid flow rates and lower dispense pump back pressures, resulting in improved dispensing accuracy and component life.

The design also employs very thin rigid walls offering a larger I.D. fluid path which enables the use of smaller O.D. nozzles without sacrificing dispense rates.

Additionally, the thin walls further enhance the accuracy and definition of dots, lines or special patterns while at the same time dramatically reducing fluid stringing or tailing tendencies.

All Luer lock nozzles fit our dispensing valves, dispensing barrels and manual syringes.

Features & Benefits

• Micro precision dispensed dots and lines to 50 microns
• Tapered for optimal flow path
• Repeatable precision
• Thin rigid metal construction
• Colour coded hubs
• Secure Luer lock connection
• Excellent for precision solder paste deposition
• Excellent for precision close die tolerance underfill
• Medical precision
• MEMS
• Semiconductor packaging
• Automated micro-dispensing applications

Materials

• Nozzles are manufactured from phosphor bronze with electroless nickel plating (18-21 gauge) or nickel silver (23-30 gauge)
• Polypropylene Luer hubs
• Nozzles are colour coded
• Rated to 50°C

Micron-S Precision Nozzles - Standard Bore
Product Code	Gauge	Colour	ID (inch)	ID (mm)	OD (inch)	OD (mm)
FIS5901001	18	Pink	0.041	1.041	0.049	1.254
FIS5901002	19	Tan	0.034	0.864	0.042	1.067
FIS5901003	20	Green	0.027	0.686	0.035	0.889
FIS5901004	21	Light Blue	0.024	0.609	0.032	0.813
FIS5901005	23	Purple	0.022	0.564	0.025	0.635
FIS5901006	25	White	0.017	0.437	0.020	0.508
FIS5901007	27	Red	0.013	0.335	0.016	0.406
FIS5901008	30	Black	0.009	0.233	0.012	0.305
Micron-S Precision Nozzles - Standard Bore with Apticoat 450F coating
Apticoat 450F coating greatly reduces wicking affect when using aqueous fluids and significantly improves performance of anaerobic as well as UV cure materials. Material highly loaded with PTFE and is inert. Apticoat 450F is a replacement for stainless steel.
Product Code	Gauge	Colour	ID (inch)	ID (mm)	OD (inch)	OD (mm)
FIS5901012	18	Pink	0.041	1.041	0.049	1.254
FIS5901013	19	Tan	0.034	0.864	0.042	1.067
FIS5901014	20	Green	0.027	0.686	0.035	0.889
FIS5901015	21	Light Blue	0.024	0.609	0.032	0.813
FIS5901016	23	Purple	0.022	0.564	0.025	0.635
Micron-S Precision Nozzles - Micro Bore
Product Code	Exit	Colour	ID (inch)	ID (mm)	OD (inch)	OD (mm)
FIS5901009	150µm	Blue	0.006	0.16	0.010	0.24
FIS5901010	100µm	Orange	0.004	0.11	0.008	0.20
FIS5901011	50µm	Yellow	0.002	0.06	0.006	0.16
