Benchtop UV Curing Lamp

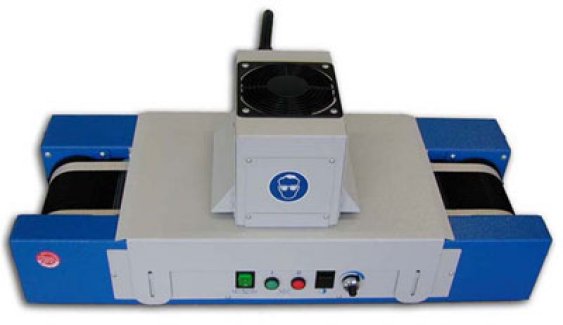

UVC-5 Light-Curing Conveyor System
- Intensity up to 400 mW/cm²
- Controlled and consistent cure times
- Adjustable lamp-to-belt distance
- Dependable, heavy duty conveyor design
- Fully shielded lamp enclosure
- Compact bench-top unit
- Qualified technical support
Description
The DYMAX UVC-5 UV Curing Conveyor System uses a high-intensity UV/visible
light source for fast curing of adhesives, coatings and encapsulants. This
cost-effective and versatile light curing system is perfect for your lab
or factory. It is a self-contained unit which fits on a bench and is powered
from normal mains electricity.
The DYMAX UVC-5 Conveyor System is equipped with a 120 mm wide belt. The lamp head is height adjustable on the belt, from ~15mm to a maximum of ~60mm (custom conveyors are available for larger objects). Curing time can be adjusted by changing the belt speed from 1 to 10 meters per minute. The intensity of up to 400 mW/cm² (UVA range) provides fast and complete cure for potting and conformal coating applications.
 |
| Specifications | |
| Light source | ~900 W bulb |
| UV bulbs available | Metal halide (standard) Mercury |
| Power supply requirement | 230V, 50 Hz, 5.9A (single phase) |
| Dimensions (approx) | Length: 700mm Height: 300mm Width: 370mm |
| Lamp height (adjustable from bottom of the reflector housing to the top of the belt) |
20mm to 65mm |
| Vertical clearance | Up to 60mm |
| Lamp type | Focused beam Focal length 40mm |
| Illuminated area | Length: 100mm Width: 120mm |
| Peak UVA intensity | 400mW/cm² |
| Bulb life | Typical 1000 hours |
| Belt | PTFE coated mesh belt, 120mm wide |
| Belt speed | ~ 1 to 10 m/min |
| Total weight | ~ 28 kg |
| Ordering information | ||
| Part number | Description | |
| DYMUVC-5 | DYMAX UVC-5 UV Curing Conveyor System - metal halide bulb | |
| DYMUVC-5/HG | DYMAX UVC-5 UV Curing Conveyor System - mercury bulb | |
| DYMUVC-5BULB/FE | DYMAX UVC-5 replacement bulb - metal halide | |
| DYMUVC-5BULB/HG | DYMAX UVC-5 replacement bulb - mercury | |
Other Information
 |
Download the data sheet for the DYMAX UV Curing Conveyor Systems |
 |
