BlueWave™ 200
UV Curing Spot Lamp
with Intensity Adjustment
- Highest intensity
- Longest bulb life
- Slashes curing costs
- Intensity adjustment
Description
The BlueWave 200 UV curing spot lamp offers the highest intensity
and simplest operation in the industry. A new patent pending intensity adjustment
feature allows operators to manually adjust intensity during process validation
and production. Users can now maintain a constant intensity by manually increasing
intensity to compensate for bulb degradation.
The BlueWave 200 primarily emits UVA and blue visible light (300-450 nm) and is designed for UV curing of adhesives, coatings and encapsulants. It contains an integral shutter which can be actuated by a foot pedal or PLC making it ideal for both manual and automated processes. A solid-state power supply provides consistent performance at any voltage (90-263 V, 47-63 Hz). DYMAX also offers a wide range array of long lasting lightguides including liquid/fiber, single/multi-pole lightguides in various lengths. The BlueWave 200 is the most versatile, user-friendly and reliable UV spot curing lamp available.

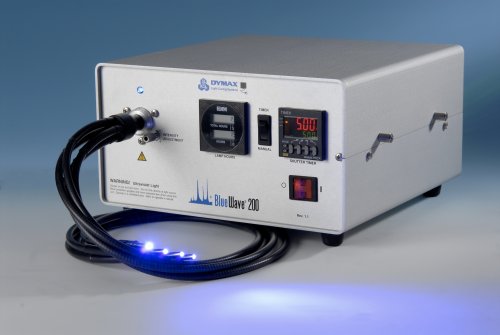

BlueWave 200 with four pole liquid lightguide
Features
- Manual intensity control - > 17,000 mW/cm² initial intensity
- Simple to operate
- 2,000 hours bulb warranty
- Integral shutter with digital timer
- Foot switch or PLC integration
- Proprietary "Cool Blue™" filter virtually eliminates liquid lightguide degradation
- Wide range of lightguides available (liquid/fiber, single/multi-pole, various lengths)
- Bulb changes in less than one minute
- Universal power input operates worldwide
| Specifications | |||||||||||||
| Intensities |
|
||||||||||||
| Intensity adjustment | Manual from 1% to 100% output | ||||||||||||
| Power requirements | 90-264V, 47-63 Hz | ||||||||||||
| Power supply | Solid state, 200 Watt | ||||||||||||
| Bulb | 200 Watt mercury bulb included; replacement in less than one minute | ||||||||||||
| Shutter timer | Digital LCD timer up to 99.99 seconds; manual or timed shutter | ||||||||||||
| Shutter activation | Foot switch or PLC | ||||||||||||
| Reflector | Elliptical; glass with dichroic coating to reflect UV and minimize IR | ||||||||||||
| I/O Port | 9 pin D - sub-miniature connector | ||||||||||||
| Signals (PLC integration) | Inputs: Shutter activate, shutter deactivate Outputs: Lamp on, lamp off, replace lamp, shutter opened, shutter closed, shutter fault |
||||||||||||
| Cooling | Filtered, dual-fan arrangement; thermally controlled to maintain proper lamp temperature | ||||||||||||
| Hour Meter | Digital LCD; lamp hours and bulb hours (re-settable) | ||||||||||||
| Dimensions (L x W x H) | 292 x 292 x 165 mm | ||||||||||||
| Weight | 5.4 kg | ||||||||||||
| * Measured through a 5mm lightguide with a
DYMAX ACCU-CAL 50 Radiometer Optional filters available |
|||||||||||||
Multi-pole lightguides are available as standard
| Recommended Lightguides | |||
| Part number | Description (liquid filled, quartz fiber also available) |
Minimum initial intensity (W/cm²) |
Typical intensity at 2000 hours (W/cm²) |
| DYM5720 | Single pole 5mm x 1m | 17.0 |
8.0 |
| DYM5721 | Single pole 5mm x 1.5m | 16.0 |
7.5 |
| DYM5722 | Single pole 8mm x 1m | 13.0 |
6.5 |
| DYM38476 | Two pole 3mm x 1m | 10.5 |
5.2 |
| DYM38477 | Three pole 3mm x 1m | 9.0 |
4.5 |
| DYM38478 | Four pole 3mm x 1m | 7.4 |
3.7 |
 |
 |
 |
 |
Control
Validation of a UV curing process identifies a minimum acceptable
intensity range which ensures complete cure in an acceptable cycle
time. Users can choose to operate at full intensity (intensity adjusted
to 100%) or maintain a constant intensity (at some lower level) through
periodic manual adjustments. The average BlueWave 200 bulb will typically
degrade <1%
per eight hours of normal use. The good manufacturing practice of routine
intensity measurement with a calibrated radiometer will determine when
and if any adjustments are required.
| Intensity Adjustment Options | |
 |
 |
| Intensity adjustment knob for fingertip adjustment |
Intensity adjustment with adjustment tool |
| Ordering information | ||
| Part number | Description | |
| DYM38605 | Bluewave 200 UV Curing Spot Lamp | |
| DYM38465 | 200 Watt replacement bulb | |
Other Information
BlueWave 200 Product Data Sheet - pdf format (217Kb)- Guide to Selecting and Using DYMAX UV Light Curing Systems - pdf format (519Kb)
| This video shows the BlueWave 200 being used in some automated processes, including gasketing and conformal coating. |
 |
See also! BlueWave 50 UV Spot Light Light curing and UV curing adhesives ACCU-CAL 50 UV Radiometer BlueWave LED Visible Light Curing Spot System
|
 |
Additional printed catalogue or brochure available |
 |
Obtain more information, samples or literature |
 |
Contact details and how to order |
| Category: | |
 |
UV/Visible Light Curing Equipment |
|
Main Product Index |
|
Search |
|
Home |
September 2010
Version 2.4
