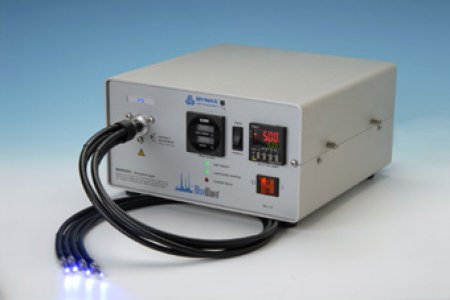

BlueWave 75 UV Curing Spot Lamp
with Intensity Adjustment
- 75W bulb delivering > 9,000 mW/cm² initial intensity
- Manual intensity adjustment
- Integral shutter with digital timer
- Simple to operate and adjust
Description
The BlueWave® 75 UV Curing Spot Lamp offers high-intensity (> 9,000 mW/cm² initial intensity) and user-friendly operation for any light-based curing application. The patent-pending
intensity adjustment feature provides user control of light intensity to
assist users in process validation and control. Intensity measurement is
easily accomplished with DYMAX ACCU-CAL 50 Radiometer.
Scheduled intensity measurements taken during the production process will
indicate whether additional intensity adjustments are required. This method
of measurement provides the most accurate readings as they are taken through
the lightguide in the actual production setting.
The BlueWave 75 UV spot light emits UVA and blue visible light (300 - 450 nm) and is designed for curing of UV and visible curable adhesives, coatings and encapsulants. It contains an integral shutter which can be actuated by a foot pedal or PLC making it ideal for both manual and automated processes. An auto-ranging power supply provides consistent performance at any input voltage (90-264V, 47-63 Hz).
Features & Benefits
- Manual intensity adjustment
- > 9,000 mW/cm² initial intensity
- Simple to operate and adjust
- 2,000 hours useful life
- Integral shutter with digital timer
- Proprietary "Cool Blue" filter virtually eliminates liquid lightguide degradation
- Wide range of lightguides available (liquid/fiber, single/multi-pole, various lengths)
- Universal input voltage for global operation
- Fast bulb replacement
| Specifications | |||||||||||||
| Intensities |
|
||||||||||||
| Intensity adjustment | Manual from 1% to 100% output | ||||||||||||
| Power requirements | 90-264VAC, 50 - 60 Hz | ||||||||||||
| Power supply | Solid-state, 75 Watt | ||||||||||||
| Bulb | 75 Watt high-pressure, short arc bulb included, replacement in less than one minute | ||||||||||||
| Reflector | Elliptical, glass with dichroic coating to reflect UV and minimise IR | ||||||||||||
| Shutter time | Digital LCD timer up to 99.99 seconds, manual or timed shutter | ||||||||||||
| Shutter activation | Foot switch or PLC | ||||||||||||
| Cooling | Filtered, single arrangement, thermally controlled to maintain proper lamp temperature | ||||||||||||
| Hour meter | Digital LCD, lamp hours and bulb hours (re-settable) | ||||||||||||
| Overall dimensions | 30.5cm x 30.5cm x 16.5cm | ||||||||||||
| Weight | 6kg | ||||||||||||
| System warranty | One year from purchase | ||||||||||||
| Bulb warranty | Ignition warranted for 2,000 hours | ||||||||||||
| Intensity Adjustment Options | |
 |
 |
| Intensity adjustment knob for fingertip adjustment |
Intensity adjustment with adjustment tool |
 |
 |
 |
 |
| Ordering information | ||
| Part number | Description | |
| DYM40077 | DYMAX BlueWave 75 UV Curing Spot Lamp with Intensity Adjustment | |
| DYM40205 | BlueWave 75 Replacement Bulb & Reflector | |
| Recommended Lightguides | ||
| DYM5720 | Single pole 5mm x 1m | |
| DYM5721 | Single pole 5mm x 1.5m | |
| DYM5722 | Single pole 8mm x 1m | |
| DYM38476 | Two pole 3mm x 1m | |
| DYM38477 | Three pole 3mm x 1m | |
| DYM38478 | Four pole 3mm x 1m | |
Other Information
 |
Download the BlueWave 75 Product Data Sheet |
 |
Download the Guide to Selecting and Using DYMAX UV Light Curing Systems |
 |
See also! BlueWave 200 UV Spot Light - very high intensity BlueWave LED Prime UVA Spot Curing System UV Adhesives for Medical Device Assembly DYMAX Complete Range Adhesives and Curing Equipment
|
 |
