MultiDyne
Corona Treating System

Description
Taking unique advantage of atmospheric corona discharge, 3DT's high and low frequency systems set new standards for corona technology. It is now possible to corona treat virtually any three-dimensional polymer surface delicately, quickly and efficiently. 3DT systems are a perfect solution to adhesion problems in injection molded, blow molded, vacuum formed or extruded parts. Treatment is done prior to adhesive application, printing, gluing, coating or laminating.

The systems can be incorporated into existing or new production lines, supplied as semi to fully automated systems or supplied as a stand alone workstation. The 3DT group offers you system solutions including, single source design, manufacturing, installation and service, regardless of the size or scope of the project.

The MultiDyne Corona Treating System is the perfect solution to adhesion problems on injection, blow molded or extruded parts. A MultiDyne Corona Treating System can be incorporated into existing or new production lines or operated manually. Treatment is done prior to printing, gluing or laminating. The MultiDyne Treating Systems have a durable, one-piece ceramic head. This makes the MultiDyne suitable for a wide variety of applications, even when treating areas near metal inserts.

The treatment of MultiDyne's corona discharge is created with the use of the "short circuit" principle generated between two hook-formed electrodes at a high voltage potential. An air stream passes between the electrodes spreading the corona field uniformly onto the surface receiving treatment. This design makes MultiDyne perfect for a wide variety of applications. Treatment on surfaces adjacent to metal inserts or areas held in a metal fixture is easily accomplished with the MultiDyne system.

Each MultiDyne system is furnished as a complete set of components including generator, transformer and one or two treating heads. For treatment of large complex areas such as containers and bottles, multi-headed systems are available with 4, 6, 8 or 10 heads. Standard treating heads deliver treatment to unlimited lengths of material with widths of up to 65mm. Flat surfaces and complex 3-dimensional parts alike are treatable with the flexibility of the MultiDyne system.

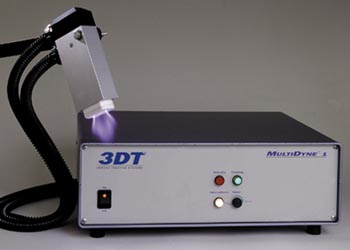

A compact and durable aluminum cabinet houses both generator and transformer. The treating head connects securely to the cabinet via a high voltage cable and air hose. The solid state controlled generator has a built-in treating timer that is activated and adjusted on the front panel. This custom designed and manufactured generator supplies power to the high voltage transformer when then directly supplies the treating head resulting in low frequency corona discharge.

Applications

• Medical
  Filters, cell wells, test tubes, catheters, syringes, petri-dishes, needle hubs, lenses
• Automotive
  Fuse covers, engine parts, air bag covers, rubber profiles, tubing, headlights
• Electronics
  Cable, switches, polyester pcb's, housings & enclosures, screens
• Consumer
  Irons, blenders, shakers, measuring containers
• Food, cosmetics & drug
  Bottles, caps, jars, tubes

See also!  IPA isopropyl alcohol

	Additional printed catalogue or brochure available
